By visualizing the leakage and discharge of compressed air and gas at a rate of 0.0028L/min or more, gas leaks and discharges can be detected immediately.

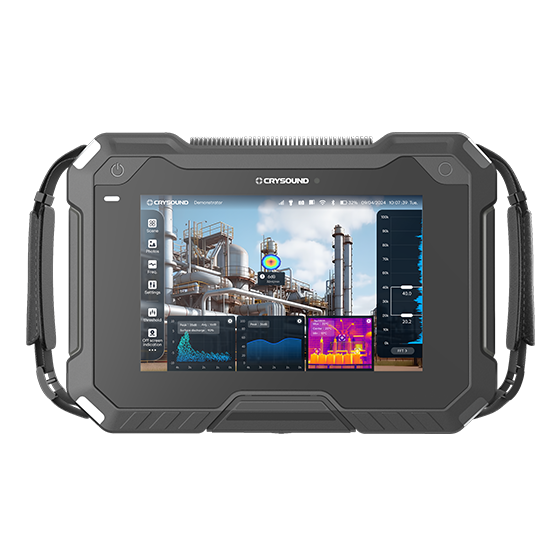

⚫TÜV Certification Obtained Zone 2 IECEx & ATEX Compliant The CRY8125 has obtained TÜV certification in compliance with IECEx and ATEX standards, meeting the requirements of IEC 60079-11 and 60079-0. It is capable of detecting gas leaks in explosive gas and dust atmospheres. ⚫Industry Leading Performance Equipped with 200 microphones, a frequency range of 100 kHz, and the fastest processor in the industry, the CRY8124 can pinpoint smaller leaks and partial discharges than any other product. ⚫Communication Methods Data can be transmitted directly to local devices via Bluetooth and WiFi. ⚫Four IEPE Sensor Inputs The system can accommodate up to four IEPE sensors (such as accelerometers and microphones) and a thermal camera, enabling complex detection scenarios. ⚫Up to 10 Hours of Operation With one rechargeable lithium-ion battery, continuous use of up to 5 hours is possible. Two batteries are included as standard, allowing for a total of up to 10 hours of operation. ⚫2-Year Warranty The CRY8125 comes with a 2-year warranty.
Inquire About This Product
Related Videos
basic information
Microphone array 200-channel MEMS microphone Frequency range 2k - 100k Hz Sound pressure measurement range 28 - 132dB Detection distance 0.5 - 200m Minimum detectable leak amount 10m 2.7bar 0.0029L/min, 0.5m 1.9bar 0.0028L/min Resolution 1920×1200 (6X digital zoom) Touchscreen 8 inches, capacitive USB-C1 USB 3.0 USB-C2 USB 2.0 3.5mm audio jack Headphone output SD card slot External storage Size 270×180×51mm Weight 1.4kg Wi-Fi 802.11a/b/g/n/ac Bluetooth BT5.2 Operating temperature -20 to +50℃, 10 to 95% non-condensing Storage temperature -20 to +70℃, 10 to 95% non-condensing IP rating IP54 Storage Internal 64GB, External 64GB Battery type Smart battery with indicator, replaceable Battery capacity 6600mAh 7.2V Battery life Up to 5 hours Explosion-proof: IECEx, ATEX
Price range
Delivery Time
Applications/Examples of results
Leakage from the upper piping joints Leakage from the large flange Leakage from the piping welds Gas leakage Exhaust leakage CO2 leakage Leakage of oxygen/nitrogen/argon/flammable gases Discharge from the insulators of transmission towers Discharge from the insulators of conduits Discharge from the insulators of gantry structures
