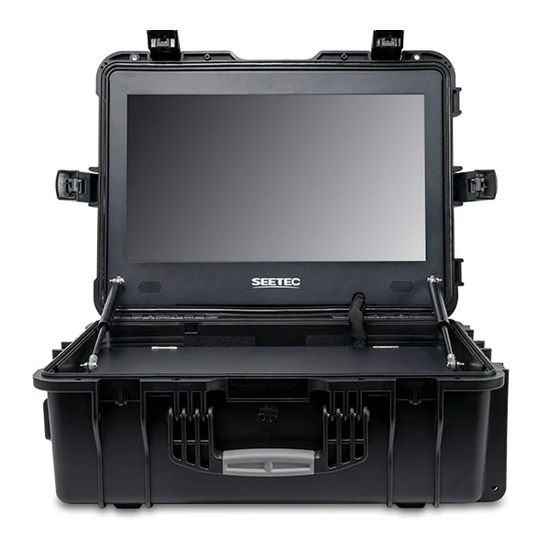

15.6" Integrated Input/Output Flight Case High Brightness Monitor WPC156
SEETEC WPC156
15.6" Carry-On Monitor for Filming, High Brightness 1,000cd/m2, 4K HDMI & 3G-SDI Input/Output, Integrated Flight Case
【SEETEC WPC156 Features】 ■ 15.6-inch wide (16:9) IPS LCD panel ■ 1920x1080 high-resolution LCD adopted ■ High resolution 4096x2160 (4K DCI) display (HDMI) ■ High resolution 1920x1080 (Full HD) display (SDI) ■ Wide viewing angle 89°/89° (L/R), 89°/89° (U/D) ■ Abundant input and output options 3G-SDI input x1, 3G-SDI output x1 HDMI input x2, HDMI output x2 ■ Rich auxiliary features Screen rotation Shooting assistance features (False Color, Check Field, Zoom-in) ■ XLR power connection available ■ Portable waterproof case, suitable for harsh shooting environments ■ Case allows monitor to be mounted on a tripod
Inquire About This Product
basic information
Specifications - Panel: 15.6-inch wide (16:9) IPS LCD with LED backlight - Display resolution: 720p to 4096x2160p (4K) - Physical pixels: 1920x1080 - LCD brightness: 1,000cd/m2 - Contrast: 1200:1 - Viewing angle: 89°/89° (left/right) 89°/89° (up/down) - Input signals: SDI, 2 HDMI - Output signals: SDI, 2 HDMI - Audio: Stereo headphone, speaker - Power supply / Power consumption: DC 12V / ≦25W - Dimensions: 479(W)x387(H)x210(D)mm - Weight: 9.8kg - Operating temperature: 0 to 50℃ Package contents - Main unit - V-mount battery plate attached - AC adapter AC100V DC12V - Manual - Mini HDMI cable - SDI cable
Price range
Delivery Time
※If in stock, we will deliver immediately.
Applications/Examples of results
4K UHD/Full HD camera, monitor use for video shooting, etc.
catalog（1）
Download All Catalogs
