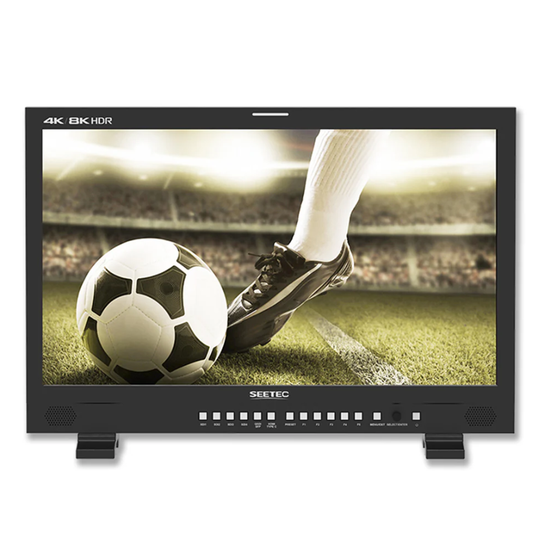

SEETEC, 23.8-inch Wide IPS LCD Panel, 4K HDMI & 12G-SDI Input/Output, Monitor for Video Cameras
【SEETEC 12G238F Features】 ■ 23.8-inch wide (16:9) IPS LCD panel ■ 3840x2160 high-resolution LCD ■ High resolution 4096x2160 (4K DCI) display (HDMI) ■ High resolution 3840x2160 (4K UHD) display (SDI) ■ Wide viewing angle 89°/89° (L/R), 89°/89° (U/D) ■ Abundant input and output options 12G-SDI input x4, 12G-SDI output x4 HDMI input x2 RS422 input x1, RS422 output x1, GPI x1, LAN x1 ■ Rich auxiliary features Screen rotation Shooting assist functions (False Color, Check Field, Zoom-in) Dynamic UMD (TSL 3.1/4.0/5.0 protocol)
Inquire About This Product
basic information
Specifications - Panel: 23.8-inch wide (16:9/4:3) IPS LCD LED backlight - Physical pixels: 1920x1080 - Display resolution: 480i to 4096x2160p (4K) - LCD brightness: 540cd/m² - Contrast: 1200:1 - Viewing angle: 89°/89° (left/right) 89°/89° (up/down) - Input signals: 4 12G-SDI (8K compatible), 2 HDMI (4K compatible) - Output signals: 4 12G-SDI (4K compatible) - I/O: 2 RS422 (1 IN, 1 OUT) (RJ45), GPI (RJ45), LAN (RJ45) - SDI input, SDI output: BNC - Power supply / Power consumption: AC 100V to 240V / 90W - Dimensions / Weight: 571.7(W)x414.85(H)x160(D)mm / 8.2kg - Operating temperature: -10 to 50℃ Package contents - Main unit - AC cord - Stand - Manual - Mini HDMI cable - HDMI cable - SDI cable
Price information
Open price
Delivery Time
Applications/Examples of results
4K UHD/Full HD camera, monitor use for film shooting, etc.
Company information
Currently, Taiwan has become a global supply base for industrial electronic equipment, and we aim to contribute to the development of Japanese industry by providing excellent industrial electronic equipment from Taiwan to Japanese engineers. As a specialized trading company for industrial electronic equipment, we will supply the necessary industrial electronic devices (LCD displays, LCD modules, embedded PCs, AI embedded PCs, panel PCs, CPU boards, measurement and control boards, network devices, video equipment, GPS devices, wireless transmission devices, IoT sensors) to engineers.
