Indium mirror coating system
Anest Iwata Racing introduces the latest chrome-like painting technology to the Toyota Lexus participating in Super GT300.

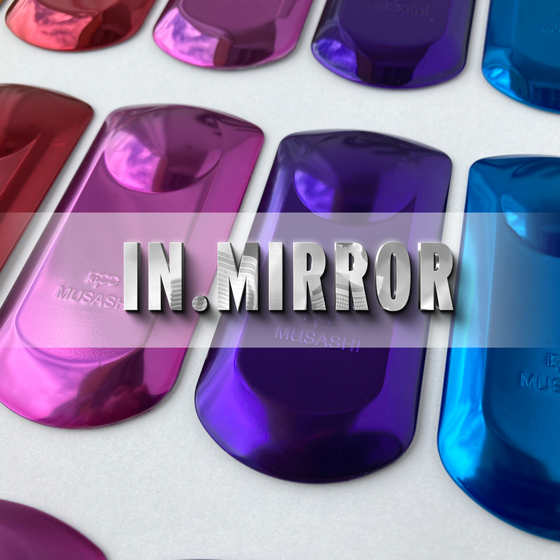

On August 3, 2025 (Sunday), at Fuji Speedway in Gotemba City, the rear Lexus emblem of the Anest Iwata Racing Toyota Lexus GT car was coated with "Indium Mirror Coating" during the Super GT300 event. The color is blue (glossy) DRIFT Mirror BLUE. 【Indium Mirror Coating is applied using the painting robot "Swan Pro"】 Indium Mirror Coating is applied by the painting robot "Swan Pro." The painting process consists of 3 coats and 3 bakes. 【Indium Mirror Coating System】 Indium Mirror Coating is achieved through the Indium Mirror Coating System. - Class 10,000 clean room - Painting robots "Swan Pro" and "Swanist" - Paint supply system "Syringe Pump System" - Transport system for painted items "Co-Swan" - Dedicated drying machine for painting "Dry Tech" This system is designed for high mass production efficiency. 【Adding decorations or UV hard coat over Indium Mirror Coating (intermediate coat) for multifunctionality and diverse expressiveness】 - Abundant color samples - Various color developments possible for matte and mirror finishes.
Inquire About This Product
basic information
The indium mirror coating system is a dedicated multilayer coating process developed to achieve a high-reflectivity mirror film primarily composed of indium. The process consists of 3 coats and 3 bakes, where each layer undergoes application, drying, and heat curing (baking) to form a coating with excellent adhesion, heat resistance, and optical performance. ■ Baking Conditions (Reference Values) ProcessTemperatureTimePurpose 1st Bake (after primer): 80–100 ℃10–15 minutesSolvent evaporation and mild curing of the base layer 2nd Bake (after intermediate coat): 120–150 ℃15–20 minutesStrengthening adhesion of the intermediate layer and improving smoothness 3rd Bake (after top coat): 150–180 ℃20–30 minutesComplete curing of the final film and stabilization of mirror finish *Conditions can be adjusted based on heating methods (hot air circulation / infrared / gas type, etc.) and work material. ■ Environmental Management Requirements (Recommended) Cleanliness: Class 10,000 (ISO 7) or better Temperature: 22–26 ℃ Relative Humidity: 45–60 % Static Electricity Measures: Recommended installation of conductive flooring and ionizers *For more details, please refer to the materials. Feel free to contact us with any inquiries.
Price information
Please contact us.
Delivery Time
Applications/Examples of results
*For more details, please refer to the materials. Feel free to contact us as well.*
Detailed information
-
Lexus emblem installation, mirror finish, DRIFT Mirror BLUE
-
Lexus emblem installation, mirror finish, DRIFT Mirror BLUE
Line up（4）
| Model number | overview |
|---|---|
| 3R3C Line Dancer 4gun 8top | This is a painting system consisting of three robots, with one robot assigned to each coat. It has a short movement time, high productivity, and is suitable for mass production. It is a 3R3C line dancer with a four-gun, eight-top automatic painting system (for mass production). One robot is equipped with four guns, and the conveying device (table) has eight tops. |
| 3R3C Swamp Pro 2 Gun 4 Top | The system processes three coats with three robots (one robot per color). It is a compact type of semi-mass production system for plating and painting. The Swan Pro is a standalone autonomous robot, and the transfer is handled by a double turn with a rotating device mounted on the Swan Pro. It is separated from the conveyor, and the painting object transport device, Co_Swan, is responsible for handling, preventing contamination of the line and issues such as poor painting. This is a 3R3C Swan Pro 2-gun 4-top automatic painting system (for semi-mass production). |
| 1R3C Line Dancer Turret 3Gun 4top | A single robot processes three coats (one robot, three colors). It is a production line for small quantities and a variety of plating and painting. It is equipped with a turret gun unit that can mount three guns, allowing for speedy color changes. This is a compact painting system. 1R3C line dancer with a 3-gun turret and 4-top automatic painting system (for small quantities and a variety of products). One robot is equipped with three guns and a conveyor device (table) with four tops. |
| 1R3C Swampro Turret 2Gun 4top | Batch painting system: This is a batch painting system that processes three coats (three colors with one robot). After each coat, it goes to a drying oven operated by a worker. It is a painting system suitable for small-scale production, and the initial costs can be kept low. 1R3C Swan Pro 2 Gun Turret 4 Top Batch Painting System (for small quantities and various types) features a robot equipped with two guns and a conveyor device (table) with four tops. |
