Can be used for small products! Operates with a single power supply voltage and only a few external components.

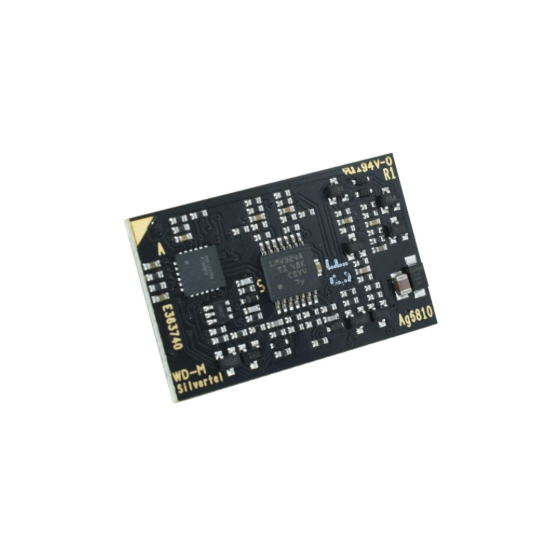

The "Ag6810" is a surface mount PSE module that supports IEEE802.3af (15.4W), IEEE802.3at (30W), and IEEE802.3bt Type 4 (90W Class 8). It can provide a maximum output of 95W for Type 4 PSE (PoE++), making it suitable for compact products that cannot fit into discrete designs. It is ideal for applications requiring PSE functionality, such as IP cameras, AV streaming, IoT, home networking, and industrial Ethernet. 【Features】 ■ Maximum output: 95W ■ World's smallest SMT size: 28mm × 18mm × 5mm (H) ■ Equipped with overcurrent protection, short-circuit protection, and thermal protection features ■ Includes Maintain Power Signature (MPS) functionality ■ Single port (Power Type Type 2, 3, 4) *For more details, please download the PDF (English version) or feel free to contact us.
Inquire About This Product
basic information
【Other Features】 ■ Dual Port (Power Supply Type 1, 2) ■ Silvertel technical support available *For more details, please download the PDF (English version) or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Applications】 ■CCTV Cameras (Dome-type Surveillance Cameras) ■Security Camera Systems ■WiFi Transmitters (Access Points) ■Digital Signage ■Access Control Terminals ■Industrial Ethernet Terminals *For more details, please download the PDF (English version) or feel free to contact us.
