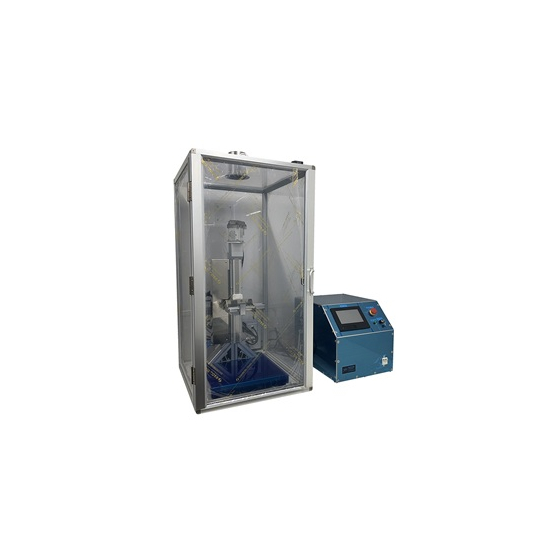

A dip coater that integrates safety, efficiency, and precision into one unit, equipped with operability (enhanced safety and explosion-proof).
The explosion-proof dip coater is a robustly designed coating device that can be safely used in production environments with explosion hazards. With precise speed control (0.1mm/sec to 60mm/sec), it ensures high production accuracy and stable quality, accommodating a variety of products such as glass, acrylic, and copper foil. The intuitive touch panel operation makes it easy to change speeds and store operation patterns, contributing to improved work efficiency and reduced human error. By adopting an explosion-proof design, it prioritizes safety while also providing reliability for long hours of continuous operation. Furthermore, the control box employs an air purge system and is designed in compliance with safety standards, allowing for safe integration into production lines.
Inquire About This Product
basic information
Stroke: 300mm Minimum Speed: 0.1mm/sec Maximum Speed: 60mm/sec Operation Method: Touch Panel Screen Language: Japanese/English Number of Processing Speed Change Points: 16 points Number of Stop Position Designation Points: 16 points Number of Stop Time Designation Points: 16 points Continuous Operation Mode: Yes Manual Operation Mode: Yes Number of Stored Programs: 8 programs Monitoring Function: Current Speed: Yes Monitoring Function: Current Position: Yes Monitoring Function: Remaining Operation Time: Yes Repeat Operation Function: Yes Standard Clip: SUS Material Utility: AC100V-110V, 1000VA Portable Weight: 1kg Maximum Processing Size: H:300mm Linear Operation Mode: No Device Size: Excluding Protrusions (Weight): W:600 D:620 H:1267mm (70kg) Control Box Size: Excluding Protrusions (Weight): W:403 D:503 H:420mm (35kg)
Price range
Delivery Time
Applications/Examples of results
The explosion-proof dip coater for safety enhancement is utilized across a wide range of fields from research to production sites. In research applications, it is used for prototyping functional thin films, nanomaterials, and substrates for sensors, enhancing the reliability of material evaluations through uniform and highly reproducible coatings. In industrial applications, it has been introduced in the manufacturing processes of electronic components, optical materials, battery electrodes, and medical device parts, allowing for safe operation even in environments with explosive hazards due to organic solvents. Notably, it has a proven track record of application on various substrates such as glass, acrylic, and copper foil, contributing to the assurance of high precision and stable quality in production lines. It is a coating device with a wealth of experience that combines reliability and safety, suitable for everything from small-scale prototyping in research and development to mass production processes.
Line up（1）
| Model number | overview |
|---|---|
| ND-0407-N1_CE,MD-0408-N1_CE、DT-0303-N1-_CE |
