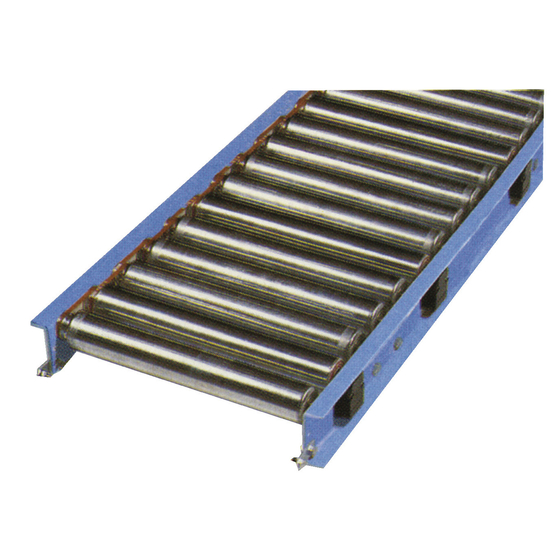

Motorola V-belt driven roller conveyor VD
Multi-Beya Series - Conveyor units that can flexibly adapt to various logistics lines.
Simple structure with quiet transportation. Easy-to-handle motor-driven conveyor.
Connect and drive the motor roller with V-pulley and the adjacent free roller with V-pulley using a urethane V-belt. 【Main Specifications】 - Reference transport weight: 35 kg/m - Frame: [90×30×2.3 - Nominal width: 300–800 mm - Nominal length: 100–300 cm
Inquire About This Product
basic information
【Features】 - Excellent quietness with V-belt drive - Compact and space-saving design - Simple structure for easy maintenance 【Other Specifications】 - Motor output: 2.3 to 40 W - Minimum height: 100 mm - Roller: φ57 mm *For detailed product information, please visit our website. *CAD data may be updated without notice. Please check our website for the latest data.
Price range
Delivery Time
Applications/Examples of results
■Meeting all needs from transportation to palletizing Each model is standardized, allowing for flexible combinations, and can accommodate all logistics needs from transportation to palletizing. ■Advantages of line configuration The main model of the Multi-Beya series, the "Counter Drive (MCD)," has a wide range of units. It can be driven by a single motor for straight sections, curves, merging, and branching, allowing for economical, rational, and flexible layouts through combinations with each unit. Additionally, there is a free roller conveyor that transports without using power. It is easy to use, cost-effective, and helps to reduce labor in various tasks. ■Driven roller conveyor The driven rollers powered by a motor feature inexpensive and simple accumulation with round belt drive. Chain drive uses rollers with sprockets driven by a chain. Flat and V-belt drives are suitable for high-speed and quiet transportation. Adjacent roller drive uses a motor or motor roller to drive the rollers. Motor roller drive operates by the rotation of the motor roller itself. These conveyors accommodate straight and curved transportation according to the transportation form.
catalog（2）
Download All Catalogs
Company information
Maruyasu Machinery is a machinery manufacturer that specializes in conveying equipment such as conveyors, as well as various automation and labor-saving machines. Through solving challenges related to "transportation," we contribute to automation, labor reduction, and energy conservation across a wide range of industries. We have adapted to any form of transportation that moves from right to left or top to bottom, handling all types of transported items including food trays, carton cases, plastic containers, and pallets. In addition to providing versatile standardized products (standard products), we have focused on offering products tailored to the individual needs of our customers. After 70 years since our founding, we will continue to dedicate ourselves to providing even more original products and services to overcome the challenging economic environment.
