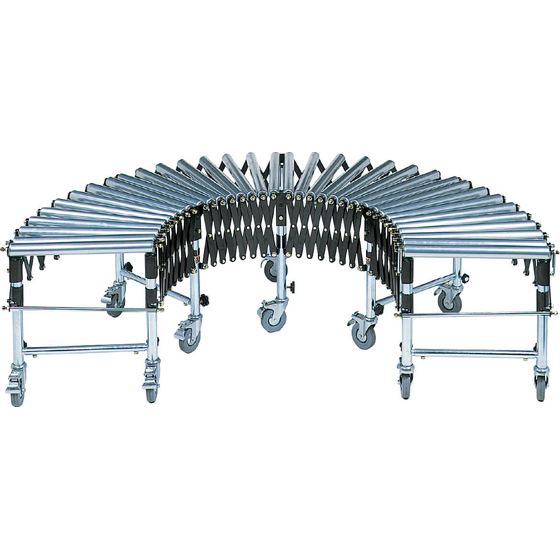

Flexible Curve Free Roller Conveyor FCR
Multi-Beya Series - Conveyor units that can flexibly adapt to various logistics lines.
Bendable and stretchable! A flexible free roller that can be configured with flexibility in line composition.
This is a free roller suitable for shrinkage and curves. The FCR42 consists of two rows of rollers, primarily used for curves, while the FCR42S consists of a single row of rollers, mainly used for straight expansion. 【Main Specifications】 - Reference transport weight: 30 kg/unit - Length: 143.2 to 395.2 cm - Width: 500 mm - Roller diameter: φ42 mm
Inquire About This Product
basic information
【Features】 - Freely configure curves and straight lines - Flexible response to layout changes - Energy-efficient and low-cost operation 【Other Specifications】 - Minimum height: 565 mm - Number of legs: 5 *For detailed product information, please visit our website. *CAD data may be updated without prior notice. Please check our website for the latest data.
Price range
Delivery Time
Applications/Examples of results
■Meeting all needs from transportation to palletizing Each model is standardized, allowing for flexible combinations, and can accommodate all logistics needs from transportation to palletizing. ■Benefits of line configuration The flagship model of the Multi-Beya series, the "Counter Drive (MCD)," has a wide range of units. It can be driven by a single motor for straight sections, curves, merging, and branching, allowing for economical, rational, and flexible layouts through combinations of units. Additionally, there is a lineup of free roller conveyors that transport without using power. They are easy to use, cost-effective, and help reduce labor in various tasks. ■Driven roller conveyors The driven rollers powered by a motor feature inexpensive and simple accumulation with round belt drive. Chain drive, which drives rollers with sprockets via a chain. Flat and V-belt drives suitable for high-speed and quiet transportation. Adjacent roller drive, which drives rollers with a motor or motor roller. Motor roller drive, which drives through the rotation of the motor roller itself. These conveyors accommodate straight and curved transportation according to the form of conveyance.
