Swivel joint for water-cooled and liquid-cooled piping for data centers!

Related Videos

basic information

A swivel joint is used when transporting pressurized fluids to change the angle of the piping, rotate it, or move it in up, down, left, right, or forward and backward directions. Among these, sanitary swivel joints are primarily used in sanitary piping for food, beverages, chemicals, pharmaceuticals, and data centers. The rotating part is designed without grease to prevent contamination, and its shape minimizes the occurrence of liquid pooling, making it a particularly hygienic rotating joint. 【Customer Feedback】 ■ Increased efficiency in filling operations, and the previously obstructive hoses have been neatly eliminated (sake manufacturer). ■ Work time has been reduced as there is no need to attach or detach the clamp. ■ Can be moved horizontally, so fixed piping does not get in the way (dairy manufacturer). ■ Resolved issues with hose damage (food machinery manufacturer).

Price information

It varies depending on size, shape, and connection method, so please contact us for more details. Renting or trying out the actual device is free.

Delivery Time

※Please contact us.

Applications/Examples of results

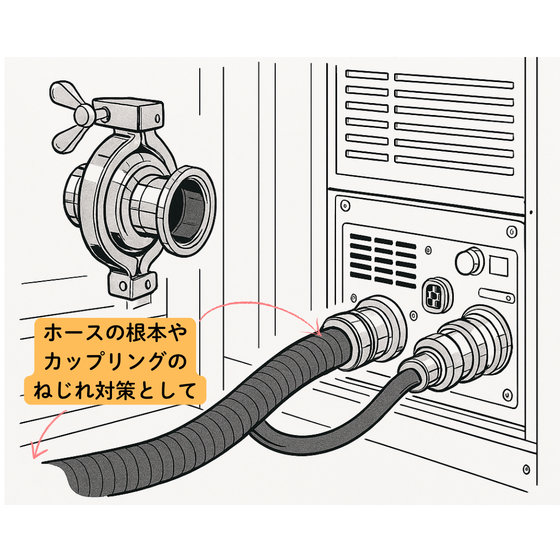

There are hundreds of proven fluids, including water, alcohol, seasonings, paints, and various beverages. 【Applications】 ◆ Extractors ◆ Filling machines ◆ Pipe distribution (from tank/container to another tank, etc.) No need for clamp attachment/detachment! ◆ Mounted at the base of the hose → absorbs twisting, allows maneuverability, prevents bending ◆ Scales with vertical movement ◆ Capable of 3D movement with multiple uses 【Implementation Results】 ■ Food products (ice cream, cheese, red bean paste, jelly, fish meat, chocolate) ■ Beverages (tea, coffee, juice, alcoholic drinks) ■ Seasonings (soy sauce, sauce, mirin, vinegar, dressing, mayonnaise) ■ Cooking oils (salad oil, sesame oil, rice oil, olive oil) *Also used for CIP cleaning solutions. ■ Pharmaceuticals (supplement materials, tablets, hair growth agents, detergents, ointments) ■ Cosmetics (raw materials) ■ Paints ■ Chemicals (materials, slurries) ■ Semiconductor components (cleaning water, (organic) solvents, etc.) ■ Data centers (combination with water-cooled piping hoses and couplings) *For more details, please refer to the PDF document or feel free to contact us.

Detailed information

•

  Structure

Line up（3）
