It is a control panel for FA that incorporates IT.

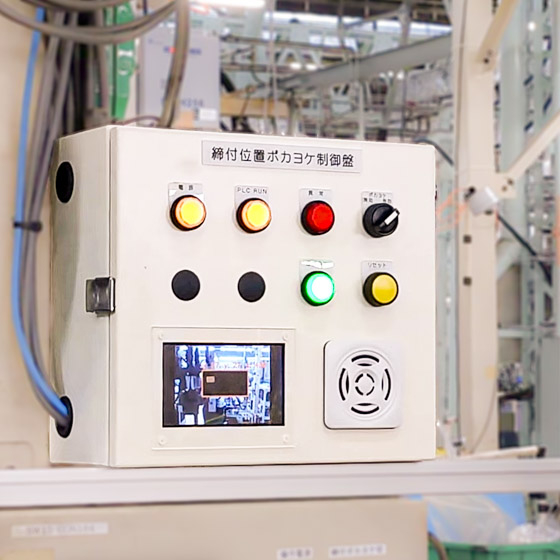

The "Edge Control Panel" is a control panel developed with the aim of introducing IT into production sites such as manufacturing lines. - It is equipped with a Raspberry Pi (a small PC) as an IT device. - All I/O as a control panel is managed by a PLC. The Edge Control Panel has basic functions for integrating FA (Factory Automation) and IT implemented as modifiable samples. By utilizing this, both IT engineers who are unfamiliar with FA and FA engineers who are unfamiliar with IT can develop systems that combine FA and IT. With fanless implementation using dedicated heat sinks, the adoption of industrial-grade power supplies and storage, and optimization of various kernel parameters, it is designed specifically for FA to a level that is not recognized as a "problem" by ordinary IT companies. It has a proven implementation even in large factory production lines.
Inquire About This Product
basic information
【Hardware Specifications】 - Box dimensions: W 300mm / H 300mm / D 160mm - Industrial 5V switching power supply (5.1V output) - Industrial 24V switching power supply - PLC MELSEC iQ-F FX5UC - Push-in terminal block - Indicator lights (power, PLC RUN, green, red) - Select switch and push button - MP3 alarm - IT equipment: Raspberry Pi 4 Model B (2GB) - 5-inch display 【IT Software Specifications】 - OS: Ubuntu 24.04 LTS (Lubuntu flavor) - PLC integration function (Python) 【FA Software Specifications】 - PC integration function (ladder)
Price information
Standard price: 500,000 yen (excluding tax) - There is a wholesale price set for trading companies. - There is a quantity discount available.
Price range
P3
Delivery Time
P4
※The standard delivery time is "2 weeks after payment."
Applications/Examples of results
- Image processing system - Industrial IoT system - Control panel for small equipment
Company information
Saki Lab is an exceptionally serious system development company. In recent years, it has particularly focused on system development related to FA (Factory Automation). Its strongest area is software development. It can develop various software, from microcontrollers to the cloud. It also supports the development of control software using PLCs. Next, it excels in network construction. It can handle not only IT-related networks like Ethernet but also FA-related field networks. It is also engaged in wired and wireless site surveys and optimizations. Regarding hardware, it specializes in the implementation of low-power wireless microcontrollers and IoT devices utilizing MEMS sensors.
