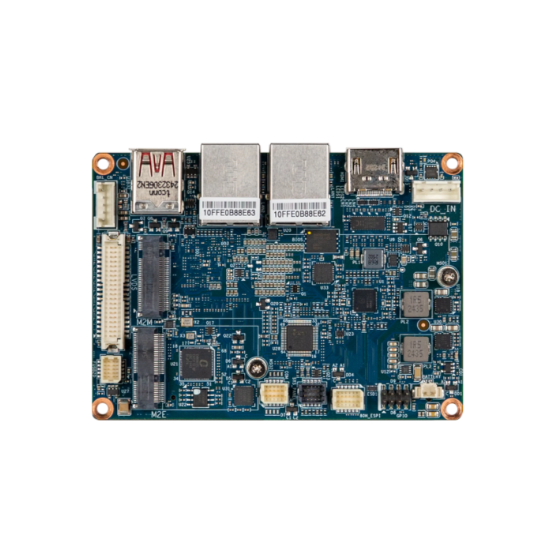

GIGAIPC PICO-ITX standard single board computer equipped with Intel Atom x7433RE.
Features: ● Equipped with Intel Atom x7433RE processor ● Single-channel DDR5 SODIMM x 1 slot (sold separately) ● HDMI port x 1 ● USB 3.2 Gen 1 port x 1 ● USB 3.2 Gen 2 x 1 port x 1 ● USB 2.0 ports x 2 ● Heat sink available for separate purchase 25ST1-1231ZD-Z1R: Heat sink * This model does not include an operating system.
Inquire About This Product
basic information
【Board Standard】PICO-ITX 【CPU】Intel Atom x7433RE 【Memory】 DDR5 SODIMM 4800 MHz x 1 (sold separately) (up to 16GB) 【Storage】M.2 2280 M-Key x 1 (PCIe Gen 3x2) (sold separately) 【Expansion Slot】M.2 2230 E-Key x 1 (PCIe[x1], USB2.0) 【Rear I/O】USB 3.2 Gen 1 x 1, USB 3.2 Gen 2x1 x 1, RJ45 LAN x 2, HDMI x 1 【Pin Header I/O】4-pin box power connector (+12VDC) x 1, Front panel header x 1, RS-232/422/485 x 1, USB 2.0 x 2, GPIO (4-bits) x 1, Backlight Control header x 1 【Supported OS】 Windows 10/11 (x64) * A fan-equipped heatsink sold separately is required for standalone use. * This model does not include memory, storage, or OS. For details, please refer to the datasheet.
Price information
Open price
Delivery Time
Applications/Examples of results
Applications: machine control, automation systems, environmental monitoring systems, kiosk terminals, inspection devices, digital signage, gaming consoles, controllers, data loggers, and many others.
Line up（1）
| Model number | overview |
|---|---|
| PICO-x7433REA | Equipped with Atom x7433RE, Single Channel DDR5 memory, HDMI x1, USB 3.2 Gen 1x1, USB 3.2 Gen 2x1, USB 2.0 x 2, RJ45 LAN x2. |
