Challenging the Wilderness with Edge AI - The Robust Next-Generation AI Realized by AGX203

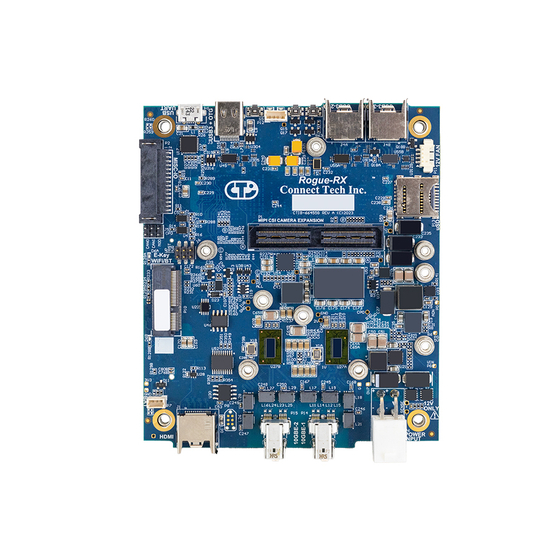

The Rogue-RX carrier board is a fully functional carrier board designed for harsh environments, compatible with NVIDIA Jetson AGX Orin and AGX Orin Industrial. It features robust latching high-speed connectors that support high-speed interfaces such as 10GBASE-T, USB 3.2 Gen2, and HDMI. Additionally, it is equipped with sturdy pin headers for UART, I2C, SPI, CAN, and GPIO. Furthermore, it offers expansion boards compatible with various camera interfaces, supporting a diverse range of video inputs including 3G-SDI, HD-SDI, GMSL, FPD-Link III, HDMI input, and MIPI input.
Inquire About This Product
basic information
Corresponding Module: NVIDIA Jetson AGX Orin / Industrial Size: 92 × 108.2mm Video Output: HDMI 2.1 (up to 8K60) ×1 Network: 10GbE ×2 (robust latch type) Storage: NVMe M.2 Key-M ×2, MicroSD ×1 USB: USB 3.2 Gen2 (10Gbps) ×2, USB Type-C OTG ×1 Serial: UART ×2, Debug UART ×1 I/O: I2C ×1, SPI ×1, GPIO ×4 (1 with PWM support), CAN 2.0b ×2 Expansion Slot: M.2 Key E (WiFi/BT) Camera Input: MIPI CSI-2 up to 16 lanes, expandable to support SDI/GMSL/FPD-Link III/HDMI Power Supply: DC +12V (latch type connector) Others: Power, Reset, Recovery buttons, RTC battery terminal Operating Temperature: -40 to +85°C
Price range
Delivery Time
Applications/Examples of results
Usage Examples - High-bandwidth camera data processing in autonomous driving and ADAS systems - Smart city monitoring and traffic control systems - Multi-camera AI processing in industrial robotics and inspection equipment - AI inference in defense, aerospace, and outdoor equipment Achievements and Advantages - Robust design for harsh environments and wide temperature range support - High-bandwidth data transfer through high-speed I/O such as 10GbE and USB3.2 Gen2 - Support for up to 16-lane MIPI and various video input expansions - Combination of large-capacity data recording and processing performance with dual NVMe
Detailed information
catalog（1）
Download All Catalogs
Company information
The evolution of digital technology has given rise to new needs, such as autonomous driving and ADAS technologies in the automotive industry, as well as imaging and vision technologies utilizing camera footage in the AI robotics sector. As a result, AI service businesses are transforming the business models of society and companies, leading to significant changes in daily life and society. Asmech collaborates with innovation companies related to AI and mobility in Europe, the United States, and Asian countries, focusing on the procurement of imaging components and devices in the fields of AI & IoT, automotive, and security. We provide cutting-edge products to customers aiming for solution development in the imaging sector, including robotics, autonomous driving, drones, industrial cameras, and recording devices. Additionally, we position service to local customers as one of our key challenges, forming alliances with local businesses, universities, government agencies, and local municipalities. Through our security-related businesses, such as the installation of security cameras and recording services, we aim to contribute to the local community.
