New Frontiers of Multi-Sensor AI Expanding with NGX021 Boson-22

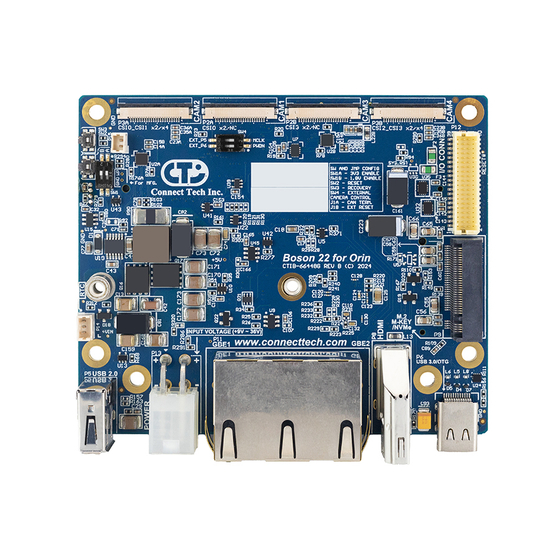

The Boson-22 carrier board is a high-performance carrier board for AI vision that supports NVIDIA Jetson Orin NX and Orin Nano modules, integrating up to four MIPI cameras in a compact form factor. It features abundant sensor inputs and storage expansion, allowing compatibility with multiple sensor modules. By adopting PC-style connectors, it accelerates the development of applications utilizing multi-camera setups. Additionally, it supports both 2-lane and 4-lane MIPI configurations, enabling flexible system design according to application needs.
Inquire About This Product
basic information
Ethernet: Gigabit ×2 Camera Input: MIPI 22-pin ×4 Supports 4 lanes ×2 devices or 2 lanes ×4 devices Storage: NVMe M.2 M-Key (PCIe×4) ×1 Expansion Slot: M.2 E-Key (for Wi-Fi/Bluetooth) ×1 USB: USB 3.1 Gen2 Type-C (OTG supported) ×1 USB 2.0 Type-A ×1 Video Output: HDMI 2.0 ×1 Interface: UART ×3 (one for console) GPIO 3.3V ×8 (PWM supported ×2) I2C ×2, SPI ×2, CAN ×1 Power Pins: 3.3V×2, 5V×2, GND×8 Power Input: DC 9V–36V (auto power-on supported) Cooling: PWM controlled fan connector ×1 RTC: External connector supported Operating Temperature: -40°C to +85°C Size & Weight: 90mm × 75mm, 80g
Price range
Delivery Time
Applications/Examples of results
Usage Examples - Multi-camera AI recognition in autonomous driving and industrial vehicles - Person and object detection in smart surveillance systems - Image recognition processing in industrial robots and inspection devices - Real-time inference for medical imaging and research purposes Achievements and Advantages - Compact design allows simultaneous connection of multiple cameras - Compatible with both Orin NX and Nano modules for flexible AI processing performance - Optimal for industrial applications due to wide input voltage range and robust design - High scalability with fast interfaces and abundant I/O options
