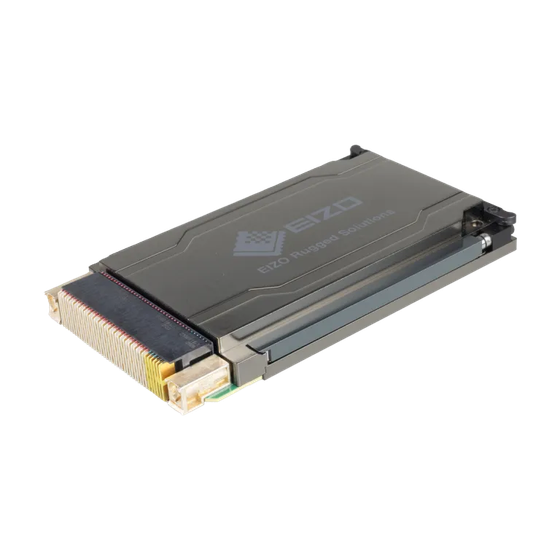

SOSA-compliant 3U OpenVPX single board computer (equipped with NVIDIA Jetson IGX T5000)
The Condor T5-IOX is a rugged, high-performance 3U VPX single-board computer equipped with the NVIDIA Jetson Thor platform. Designed for demanding tactical front-line and autonomous system applications, it provides robust multi-sensor capture and processing capabilities. The 3U VPX module supports high-throughput video and data interfaces, including four 12G-SDI inputs, USB 3.2, RS-232, and DisplayPort, enabling simultaneous capture and processing of multiple ultra-high-definition video streams. This product supports high-speed networking with four 25GbE ports and GPUDirect RDMA over Converged Ethernet (RoCE), achieving low-latency data transfer between sensors, processing elements, and storage. Additionally, the NVIDIA Jetson Thor SoM integrates dedicated GPU hardware accelerators for multi-stream video decoding (NVDEC) and encoding (NVENC), allowing for efficient processing of multiple ultra-high-resolution video feeds.
Inquire About This Product
basic information
【Specifications】 Processor: NVIDIA Jetson Thor NVIDIA IGX T5000 module CPU: 14-core Arm Neoverse-V3AE 64-bit 64KB + 64KB L1 Cache, 1MB L2 Cache per core Shared 16MB L3 Cache 2.6GHz GPU: NVIDIA Blackwell architecture GPU 2,560 CUDA Cores, 96 Tensor Cores RAM: 128 GB LPDDR5X (8x 16GB) LAN: 4x 25GbE (25GBASE-KR) PCIe: x4 Gen 5 Video Outputs: 1x DisplayPort 1.4a over VPX Video Inputs: 4x 12G-SDI over VPX Operating Temperature: -40°C to 85°C (Conductive Cooling)
Price range
Delivery Time
Applications/Examples of results
Military Avionics Surveillance Unmanned Aerial Vehicle Navy Intelligence, Surveillance, and Reconnaissance (ISR) Embedded Systems
