"Palm-sized with infinite possibilities" — Edge AI realized by NGX012

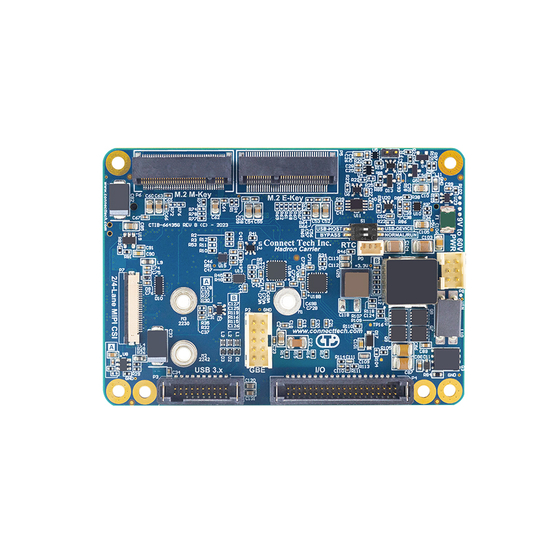

The Hadron carrier board is a super compact, robust, and multifunctional carrier board compatible with NVIDIA Jetson Orin NX and Orin Nano modules. Its size is only slightly larger than the Jetson SODIMM module, making it ideal for vision applications, inference processing, and drone-mounted systems. Furthermore, it also supports Xavier NX and TX2 NX modules, allowing for flexible module switching based on application and AI processing requirements. It features a wide power input range and locking I/O connectors, ensuring high reliability even in industrial and harsh environments.
Inquire About This Product
basic information
Ethernet: Gigabit ×1 USB: USB 3.1 Gen1 ×2, USB 2.0 Programming Port ×1 Storage: NVMe 2242/2230 M-Key ×1 Camera Input: MIPI CSI-2 (4 lanes) ×1, 22-pin FPC Interface: TTL UART ×1, RS-232 ×2, GPIO ×4 (2 with PWM support), I2C ×1, SPI ×1 Power Output: 3.3V / 5V (500mA each) Power Input: DC +9V to +60V (recommended +12V to +48V) Cooling: 4-pin fan connector (5V, Picoblade) Expansion: M.2 E-Key (WiFi/BT) ×1 RTC Battery: 3-pin connector Dimensions: 82.6 × 58.8mm Weight: 49g Operating Temperature: -25°C to +85°C When using Xavier NX / TX2 NX: USB 3.1 ×1, USB 2.0 ×1
Price range
Delivery Time
Applications/Examples of results
Usage Examples - AI inference processing in industrial robots and AGVs - Image recognition and control in drones and unmanned aerial vehicles - Person and object detection in smart surveillance systems - Real-time image analysis in medical research Achievements and Advantages - Ultra-compact design allows for integration in narrow spaces - Flexible system design with support for multiple modules including Orin NX, Nano, Xavier NX, and TX2 NX - Optimal for industrial applications with wide power input range and robust connectors - Extensive I/O expandability to accommodate a wide range of applications
Detailed information
catalog（1）
Download All Catalogs
Company information
The evolution of digital technology has given rise to new needs, such as autonomous driving and ADAS technologies in the automotive industry, as well as imaging and vision technologies utilizing camera footage in the AI robotics sector. As a result, AI service businesses are transforming the business models of society and companies, leading to significant changes in daily life and society. Asmech collaborates with innovation companies related to AI and mobility in Europe, the United States, and Asian countries, focusing on the procurement of imaging components and devices in the fields of AI & IoT, automotive, and security. We provide cutting-edge products to customers aiming for solution development in the imaging sector, including robotics, autonomous driving, drones, industrial cameras, and recording devices. Additionally, we position service to local customers as one of our key challenges, forming alliances with local businesses, universities, government agencies, and local municipalities. Through our security-related businesses, such as the installation of security cameras and recording services, we aim to contribute to the local community.
