The power hidden in a small chassis - AGX202 opens up a new frontier for edge AI.

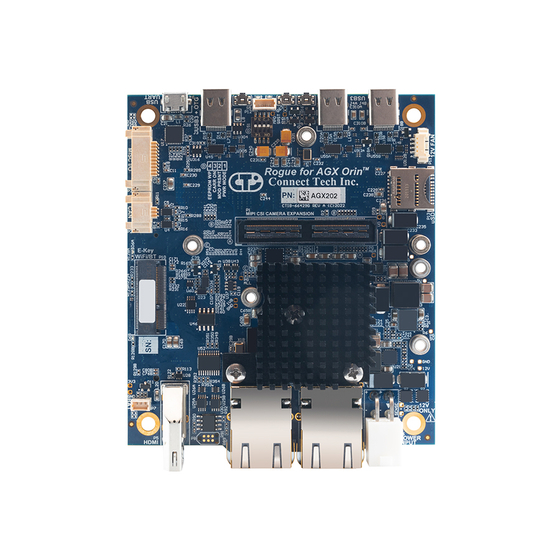

The Rogue carrier board is a fully functional carrier board compatible with NVIDIA Jetson AGX Orin and AGX Orin Industrial, designed for commercial deployment platforms. It not only provides access to the latest generation interfaces of Jetson AGX Orin but also includes additional interfaces such as dual 10GbE, USB 3.2, and HDMI. It features a locking power input connector and is characterized by a robust and reliable design. Additionally, it supports high-density MIPI CSI interfaces, allowing compatibility with various cameras through expansion boards for GMSL, FPD-Link III, and HDMI input.
Inquire About This Product
basic information
Corresponding Module: NVIDIA Jetson AGX Orin / Industrial Size: 92 × 107mm Network: 10GbE ×2 Video Output: HDMI 4K60 ×1 USB: USB 3.2 Type-C ×3 (including OTG support) Storage: NVMe M.2 Key-M ×2, MicroSD ×1 Serial: UART ×2, Debug UART ×1 I/O: I2C ×1, SPI ×1, CAN 2.0b ×2, GPIO ×4 (1 with PWM support) Expansion Slot: M.2 Key E (WiFi/BT) Camera Input: MIPI CSI-2 up to 6 channels, GMSL/FPD-Link III/HDMI support with expansion board Power Supply: DC +12V Others: Power/Reset/Recovery buttons, RTC battery terminal Operating Temperature: -40 to +85°C
Price range
Delivery Time
Applications/Examples of results
Usage Examples - Multi-camera data processing in autonomous driving and ADAS systems - Video surveillance and traffic control in smart cities - Real-time image analysis in industrial robots and inspection equipment - AI inference processing in defense and aerospace fields Achievements and Advantages - High-speed data communication via dual 10GbE and multiple USB ports - Support for various cameras with up to 6 inputs of MIPI CSI-2 and expansion boards - Suitable for industrial and outdoor environments with a wide temperature range of -40°C to +85°C - Capability to secure large-capacity storage with NVMe dual slots
