Make effective use of your existing AC adapter! Supports PD charging for USB Type-C devices with a maximum of 65W.

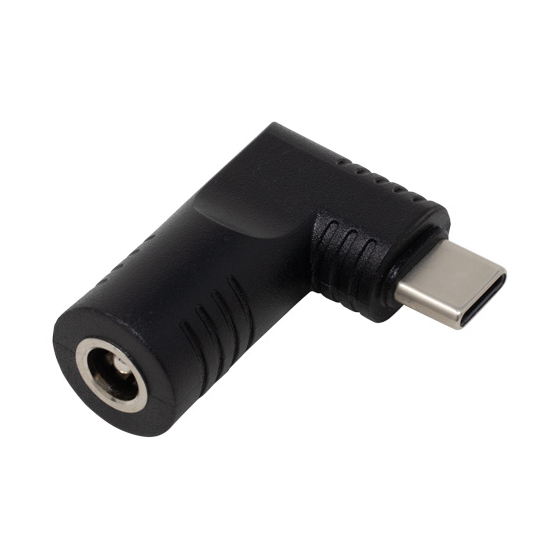

The "DCC-5525" is a USB-C power conversion adapter for 5.5mm x 2.5mm connectors that allows you to convert AC adapters for laptops and other devices to a PD65W compatible USB Type-C (USB-C) power adapter. It enables effective use of existing AC adapters. It is compatible with AC adapters that have a DC output between 16V and 20V and feature a round DC plug with an outer diameter of 5.5mm and an inner diameter of 2.5mm. You can PD charge USB Type-C compatible devices with a maximum output of 65W. The adapter itself is very compact and convenient for portability. 【Features】 - Converts AC adapters for laptops and other devices to USB Type-C (USB-C) power adapters for laptops and smartphones. - Effectively utilizes existing AC adapters. - Compatible with AC adapters that have a DC output between 16V and 20V and feature a round DC plug with an outer diameter of 5.5mm and an inner diameter of 2.5mm. - Very compact and convenient for portability. *For more details, please refer to the related links or feel free to contact us.
Inquire About This Product
basic information
【Specifications (Partial)】 ■ Connector Shape - AC Adapter (DC Input) side: Outer diameter 5.5mm (-) × Inner diameter 2.5mm (+) round DC jack - PD Output side: USB Type-C Male ■ Input Voltage on AC Adapter (DC Input) side: DC 16V or more, up to 20V ■ Output Voltage: DC 5V, DC 9V, and the rated voltage of the AC adapter body ■ Maximum Output: 65W ■ Size: W33 × D28 × H13.5mm *For more details, please refer to the related links or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the related links or feel free to contact us.
Company information
Our company handles front and rear I/O, drive accessories, internal power cables, and cooling fans. Please feel free to contact us if you have any requests.
