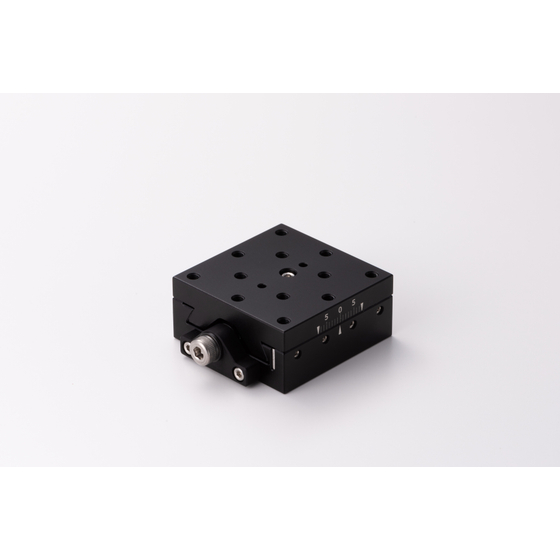

A stage that does not move after positioning.
1. Does not move after positioning (patented product) 2. Ensures sufficient movement range of ±15mm 3. Clean appearance due to the absence of handles and clamps 4. No hassle of clamping and unclamping every time adjustments are made 5. No worries about accidental touches causing movement 6. Ideal for space-saving and integration into devices 7. Can be installed in vertical orientation or upside down
Inquire About This Product
Related Videos
basic information
Specifications [Excerpt] Please check the details on the website or in the catalog. Model: SLX40 * Stage surface: 40mm x 40mm * Travel amount: ±8mm * Travel accuracy (circularity): 20μm * Load capacity: 39.2N (4kgf) * Weight: 0.09kg Model: SLX60 * Stage surface: 60mm x 60mm * Travel amount: ±15mm * Travel accuracy (circularity): 30μm * Load capacity: 58.8N (6kgf) * Weight: 0.18kg Model: SLX40-60 * Stage surface: 40mm x 60mm * Travel amount: ±15mm * Travel accuracy (circularity): 30μm * Load capacity: 58.8N (6kgf) * Weight: 0.13kg
Price range
Delivery Time
Applications/Examples of results
It is used for various positioning applications, from on-site operations to equipment assembly. It is widely utilized as a standard component for positioning applications, particularly in the FA field, as well as for machine element parts such as jigs and tools.
catalog（1）
Download All Catalogs
Company information
The precision and optical equipment manufactured by Miraku Optical is all MADE IN JAPAN. The products, crafted through meticulous and delicate handwork that can be said to be a traditional Japanese art, are ones we can confidently recommend to our customers in terms of quality, precision, and durability. We want to choose products that are easy to use. Affordable, high-precision, simple, and something that can be used continuously, fitting comfortably in hand. An indispensable part of the body, with a feel like glasses or shoes. "Before you know it, it has become a long-term tool (partner)." Craftsmen have created high-quality products with a focus on ease of use.
