Equipped with in-house BMS for multiple protections. Lightweight and highly efficient, compatible with a wide range of energy solutions.

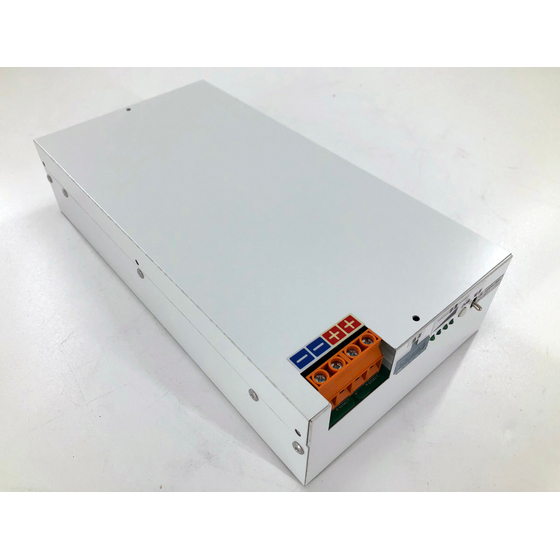

The "BT500-4S1P" is a lithium battery pack that balances safety and high performance. The BMS monitors the status of each cell in real-time, preventing overcurrent and temperature rise, allowing for safe usage. It achieves both lightweight design and long lifespan, which were difficult with lead batteries, reducing weight to below 40% and extending cycle life to over three times. Furthermore, its zero-maintenance design significantly reduces daily maintenance costs. It is being adopted in a wide range of fields, including ships, camper vans, solar energy storage, and golf carts. *For more details, please refer to the PDF document or feel free to contact us.*
Inquire About This Product
basic information
Specifications Type: Lithium-ion battery, Lithium iron phosphate Nominal Voltage: 12.8V Nominal Capacity: 25Ah Nominal Power: 320Wh Voltage Range: 11.2–14.4V Maximum Charge Current: 25A Maximum Discharge Current: 25A / Continuous 60A/10Sec Recommended Charging Conditions: Charging Voltage 14.4V Charging Current 2.5A (0.2C) BMU Protection Functions: Overcurrent protection, short circuit protection, overvoltage protection, over-discharge protection, battery temperature protection, cell balance control BMU Self-Consumption Current: Operating: below 30mA, Switch OFF: below 10uA Communication Function: RS232C or CAN Total voltage, cell voltage, battery temperature, current, alarms Display Function: Battery level indicator: 4 LED lights, check with push button (Flashing: ~20%, 1 light on: 20–39%, 4 lights on: 80% or more) Operating Temperature: Charging 0–45℃ Discharging -20℃–45℃ Storage Temperature: -20℃–45℃ Casing: Material: Color steel plate t=0.5 Refer to the outline drawing. Weight: Approximately 3 kg *For more details, please refer to the PDF document or feel free to contact us.*
Price information
Please feel free to contact us.
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
catalog（4）
Download All Catalogs
Company information
Axon Data Machine Co., Ltd. is engaged in the development, manufacturing, and sales of solar power generation and battery-related equipment. We handle a variety of products, including solar systems, engine starters, and surge protection boosters and cables. Please feel free to contact us if you have any inquiries.
