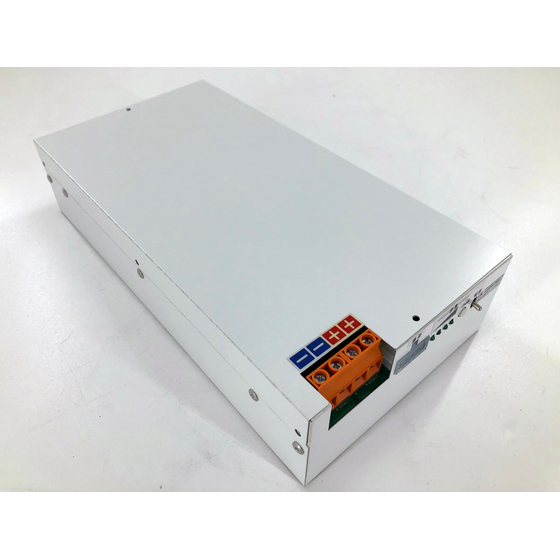

A maintenance-free design that surpasses lead-acid batteries. A lightweight and highly reliable power package.
The BT500 series utilizes lithium iron phosphate battery cells that excel in durability and safety, equipped with a multi-layer protection function through a BMS. This enables stable operation even in harsh environments, making it a long-lasting and reliable power source. Compared to conventional lead batteries, its weight is reduced by about 40%, its lifespan is over three times longer, and its usable capacity is more than double, significantly enhancing performance. It allows for long-term operation with zero maintenance, making it ideal for camper vans, industrial equipment, and renewable energy storage applications. *For more details, please refer to the PDF document or feel free to contact us.*
Inquire About This Product
basic information
Specifications Type: Lithium-ion battery, Lithium iron phosphate Nominal voltage: 12.8V Nominal capacity: 25Ah Nominal power: 320Wh Voltage range: 11.2–14.4V Maximum charging current: 25A Maximum discharge current: 25A / Continuous 60A/10Sec Recommended charging conditions: Charging voltage 14.4V Charging current 2.5A (0.2C) BMU protection features: Overcurrent protection, short circuit protection, overvoltage protection, over-discharge protection, battery temperature protection, cell balance control BMU self-consumption current: Operating: below 30mA, Switch OFF: below 10uA Communication function: RS232C or CAN Total voltage, cell voltage, battery temperature, current, alarms Display function: Battery level indication: 4 LED lights Check with push button (Flashing: ~20%, 1 light on: 20–39%, 4 lights on: 80% or more) Operating temperature: Charging 0–45℃ Discharging -20℃–45℃ Storage temperature: -20℃–45℃ Casing: Material: Color steel plate t=0.5 Refer to the outline drawing. Weight: Approximately 3 kg *For more details, please refer to the PDF document or feel free to contact us.
Price information
Please feel free to contact us.
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
