Achieving stable power supply. A power source that supports communication infrastructure with a long-life design.

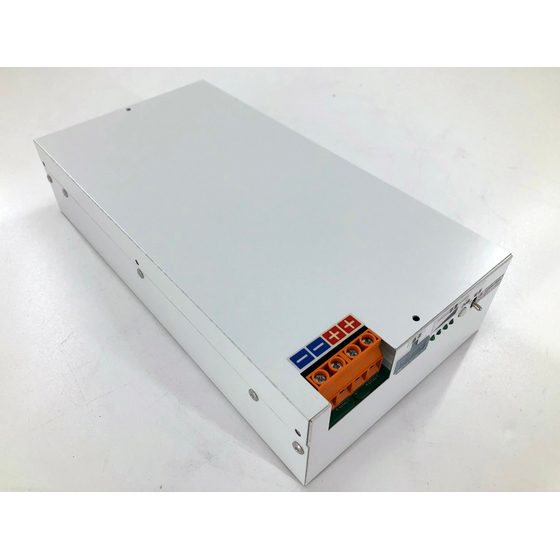

The "BT500-4S1P" is ideal for backup power for base stations and communication devices. It operates stably for long periods with zero maintenance, reducing the risk of power outages. With its lightweight, large capacity, and long lifespan, it contributes to cost reduction as a substitute for lead batteries. *For more details, please refer to the PDF document or feel free to contact us.*
Inquire About This Product
basic information
Specifications Type: Lithium-ion battery, Lithium iron phosphate Nominal voltage: 12.8V Nominal capacity: 25Ah Nominal power: 320Wh Voltage range: 11.2–14.4V Maximum charging current: 25A Maximum discharge current: 25A / Continuous 60A/10Sec Recommended charging conditions: Charging voltage 14.4V Charging current 2.5A (0.2C) BMU protection functions: Overcurrent protection, short circuit protection, overvoltage protection, over-discharge protection, battery temperature protection, cell balance control BMU self-consumption current: Operating: below 30mA, Switch OFF: below 10uA Communication functions: RS232C or CAN Total voltage, cell voltage, battery temperature, current, alarms Display functions: Battery level indication: 4 LED lights, check with push button (Flashing: ~20%, 1 light on: 20–39%, 4 lights on: 80% or more) Operating temperature: Charging 0–45℃ Discharging -20℃–45℃ Storage temperature: -20℃–45℃ Casing: Material: Color steel plate t=0.5 Refer to the outline drawing. Weight: Approximately 3 kg *For more details, please refer to the PDF document or feel free to contact us.*
Price information
Please feel free to contact us.
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
