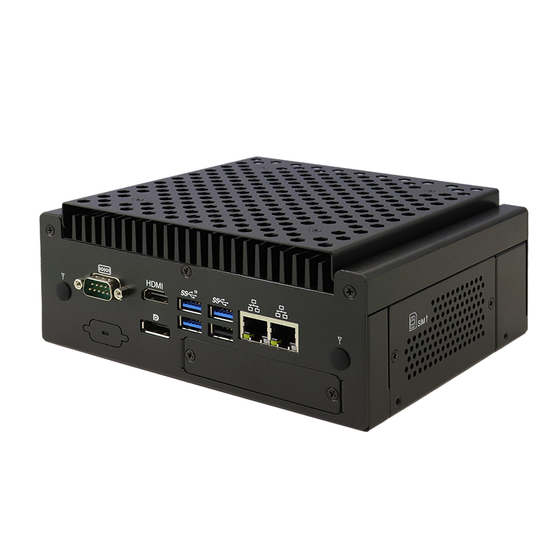

iBASE, for embedded systems, compact type, equipped with Core Ultra 100U series mobile CPU, fanless operation.
【iBASE ASB200-962U Features】 ■ Width 180 × Height 72 × Depth 150 mm, 1.94 liters ■ Onboard Core Ultra 100U series CPU (TDP@15W) ■ Fanless operation ■ Multiple M.2 sockets (B-key/E-key/M-key) ■ DDR5-5600 SO-DIMM x2 (Max 97GB) ■ 2.5G LAN x2, USB3.2 x3, USB2.0 x3, COM x1 ■ M.2 SSD (M-Key (NVMe)) x1, 2.5" SSD/HDD x1 ■ HDMI & DP, GPIO, TPM2.0 ■ Extended operating temperature -10 to 55℃
Inquire About This Product
basic information
Specifications ■CPU: Core Ultra 7 165U 1.7GHz (up to 4.9GHz) / Ultra 5 135U 1.6GHz (up to 4.4GHz) (TDP 15W) ■Memory: DDR5-5600 SO-DIMM x 2 (up to 96GB) ■CPU Board: IB962AF-165U / IB962AF-135U ■Storage: M.2 M-Key 2280 (NVMe) x 1, 2.5" SSD/HDD x 1 ■Display: DP x 1, HDMI x 1 ■Expansion Slots: M.2 (1 B-Key, 1 E-Key) x 2 ■I/O Connectors: 2.5GbE x 2 (RJ-45), USB3.2 x 3, USB2.0 x 1, RS-232/422/485 x 1 (D-Sub9), DIO 4 in / 4 out ■Input Power: DC input 24V, AC adapter 100–240VAC, output 24VDC 90W (optional) ■Case: Aluminum, steel ■Operating Temperature: -10 to 55℃ (with airflow (0.9m/s)) ■Certification: CE, LVD, FCC Class B
Price range
Delivery Time
※It may vary depending on the quantity and timing, so please feel free to contact us.
Applications/Examples of results
For machine, factory, and building automation/monitoring systems.
Line up（3）
| Model number | overview |
|---|---|
| ASB200-962U-7M | Core Ultra 7 165U 1.4GHz (up to 5GHz) (TDP 15W) |
| ASB200-962U-5M | Core Ultra 5 135U 1.7GHz (up to 4.6GHz) (TDP 15W) |
| Option | 90W AC adapter, VESA mounting bracket |
