Maximize performance and lifespan with the correct clamp! An explanation of spindle mounting standards for high-precision machining.
We would like to introduce the specifications of the "spindle clamp." An accurate mounting design according to the spindle type is fundamental for high-precision machining. Improper clamping can lead to reduced accuracy and spindle damage, while precise design and construction can achieve stable machining performance. Please feel free to contact us when you need assistance. 【Mounting Requirements (Partial)】 ■ Spindle without flange - Minimum clamp length should be 1.5 times the spindle outer diameter or more - Chuck inner diameter tolerance should conform to ISO H6, and spindle outer diameter to ISO h6 ■ Spindle with flange - Clamp length should be designed as long as possible - Chuck inner diameter tolerance should be +0.015mm to +0.005mm *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information

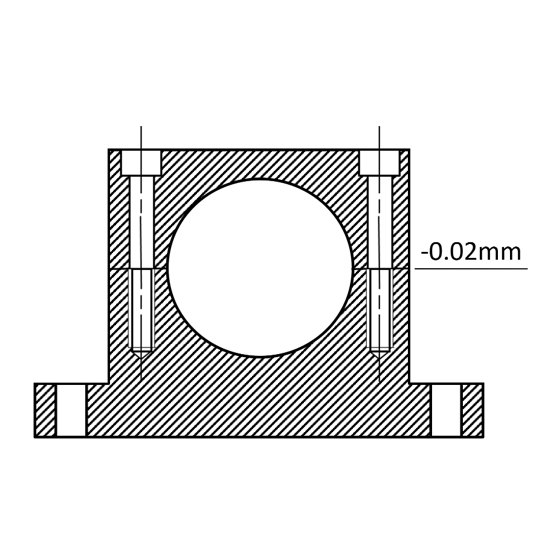

【Geometric Tolerances of Clamp Holder (Flangeless Spindle)】 ■Cylindricity Error: ≦ 0.01mm ■Concentricity Error of Hole: ≦ 0.01mm *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please download the PDF or feel free to contact us.
