Multi-channel constant current generator that can be variably set to arbitrary currents at high speed from a PC.

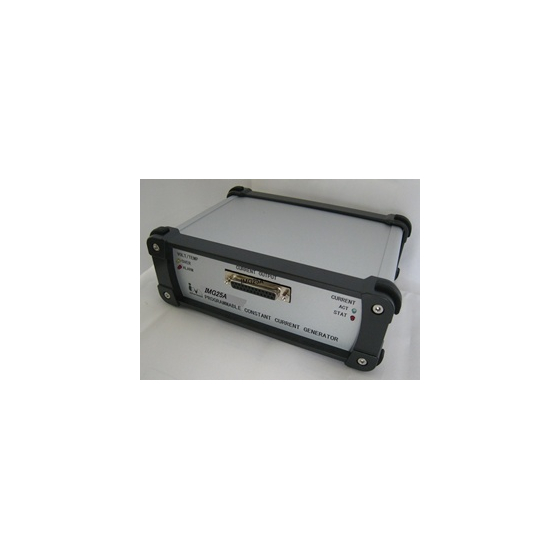

IMG25A 10CH Programmable Constant Current Generator
Custom production of the number of channels, current values, and voltage values is possible. Constant current for 10 channels can be set arbitrarily from a PC (USB) with an update speed of less than 500 μsec.
It outputs a constant current to loads controlled by current, such as optical semiconductors. The current values for each of the 10 channels can be set independently, and updates can be made at speeds below 500μsec using a USB interface. It is a portable device powered by an AC adapter. In addition to setting the current, it is also possible to read the load voltage. Current setting and voltage reading are performed via communication through separate USB connectors. Customization for the number of channels, current values, and voltage values is possible. We have a proven track record of up to 1024 channels. Please feel free to consult with us.
Inquire About This Product
basic information
(1) Number of channels: Maximum 10 (2) Current range: Maximum 30mA (3) Voltage range: Maximum 10V (4) Current resolution: 10bit (5) Current accuracy: 8bit or higher. Not guaranteed for settings below 100μA. (6) Current noise: Below 30μA (measured voltage noise at the load end with a 333Ω resistor, below 10mVrms) (7) Compatible load: Resistance of 333Ω or higher. Resistive load with output voltage below 10V and current value below 30mA. (8) Update speed: Below 500μsec for 10CH (time from software command to reaching the set current value). (9) Protection circuit: Does not fail in a short time during load short circuit or short circuit with adjacent channel current output. (10) Voltage monitor: Measures the voltage at the current output terminal with 8bit resolution. (11) Temperature monitor: Measures the temperature in the vicinity of the constant current circuit at 8 locations. (12) Output connector: D-sub 25 pin (13) Dimensions: 199(W) × 140(D) × 74(H) mm, excluding protrusions (14) Input/Output: Constant current output maximum 10CH, USB interface ×2, DC12V power jack
Price range
P4
Delivery Time
Applications/Examples of results
Optical semiconductor communication and other applications, for research use.
