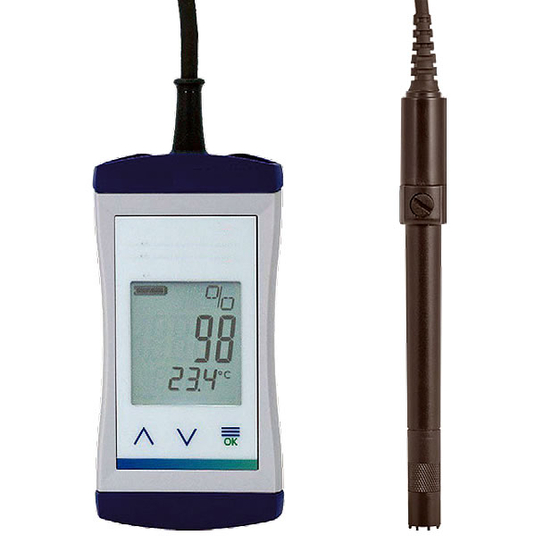

The MC8DO-531S series is a dissolved oxygen meter equipped with a maintenance-friendly galvanic battery-type sensor.
Dissolved oxygen in mg/l (ppm) and saturation oxygen concentration in percentage can both be read directly.
Inquire About This Product
basic information
■Specifications Model Number: MC8DO-531S, MC8DO-531-L04S, MC8DO-531-L10S, MC8DO-531-1002S Cable Length: 2m, 4m, 10m, 1m Sensor: Galvanic battery type (active membrane type) Electrolyte: KOH cable (fixed to the main unit) Measurement Range: Dissolved Oxygen: 0.0 to 20.0 mg/l (ppm) Saturation Oxygen Concentration: 0 to 200% O2 Temperature: 0.0 to 50.0℃ Accuracy (within specified temperature): Dissolved Oxygen: ±1.5% rdg ±0.2 mg/l (ppm) Saturation Oxygen Concentration: ±1.5% rdg ±2% Temperature: ±0.3℃ Sensor Operating Environment: Maximum Pressure: 300 kPa (up to 30m depth) Temperature: 0 to 40℃ Response Time (95%): Approximately 10 seconds (at rated temperature 25℃) Measurement Cycle: Approximately 2 times/second Display: 3-segment display LCD, battery status display, backlight function, upside-down display by button push Standard Functions: Maximum/Minimum/Hold display Auto Power Off: User-configurable Power Supply: AA alkaline batteries x2 (standard included) Current Consumption: Approximately 0.8 mA (without backlight) Approximately 2.7 mA (with backlight)
Price range
Delivery Time
Applications/Examples of results
The MC8DO-531S series can be used for water quality monitoring in various applications such as freshwater and seawater aquariums, fish farms, and wells. Simple calibration can be performed through button operation in the atmosphere, and by attaching the GSKA cap that protects the membrane, it can also be used in deep water areas. The backlit 3-level LCD display provides ease of use and wide visibility day and night, while the energy-saving design and configurable auto power-off function ensure a long battery life for the two AA batteries used as the power source. It supports maximum/minimum and hold display functions.
