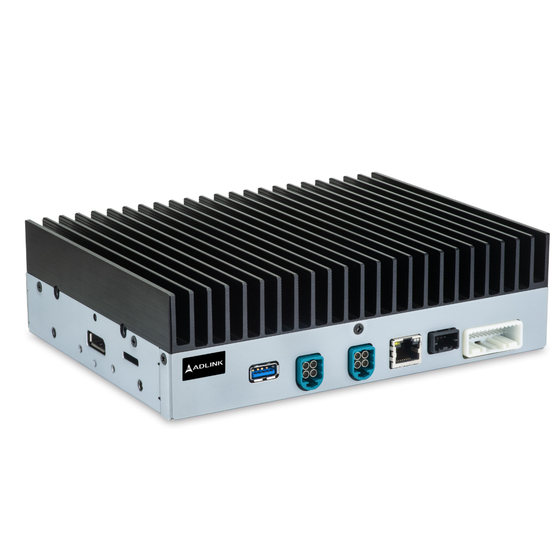

ADLINK, for AI-ADAS (Advanced Driver Assistance Systems), equipped with TI TDA4V MidEco, compatible with in-vehicle cameras.
【ADLINK ADM-TJ30 Features】 ■ Dimensions: 200mm width × 56mm height × 150mm depth, 1.68 liters ■ Deep learning accelerator: TI TDA4V MidEco SoC, fanless ■ I/O connectors: 1x DP, 1x GbE + 1x LAN, 1x USB3.0, 4x CAN/CAN-FD, 3x GPIO ■ ADAS solution integrating 360-degree all-around monitoring and in-vehicle monitoring with automotive-grade cameras and ECUs ■ Supports multiple ADAS functions: AVM (Around View Monitor), BSIS (Blind Spot Information System), BSD (Blind Spot Detection), DMS (Driver Monitoring System), LDW (Lane Departure Warning), FCW (Forward Collision Warning) ■ Complies with UN regulations for large commercial vehicles (UN R130, R131, R151) ■ Input power: DC 9–32V input (power consumption 15W) ■ Operating temperature: -40 to 85℃
Inquire About This Product
basic information
Specifications ■System Core (SoC): TI TDA4V MidEco ■Storage: 1 × MicroSD Card ■I/O Connectors: GbE x 1 (RJ-45), 100 Base-T1 x 1, USB3.0 x 1, DP x 1, CAN/CAN-FD x 4, GPIO x 3 Camera Model Numbers: oToCAM 206: oToCAM 222: oToCAM 251 Scenario: ADAS: ADAS: DMS Image Sensor: Sony ISX 019: Sony ISX 021: ST VB56G4A Resolution: 1M: 1280(H) x 800(V): 2.5M: 1920(H) x 1280(V): 1.2M: 1088 x 1080 FOV: 137 degrees: 103 degrees: 30.3 degrees Interface: FPD Link III (oToCAM 206/oToCAM 222/oToCAM 251) IR LED: Two IR (940nm) LEDs (oToCAM 251) Protection: IP67 / IP69K
Price range
Delivery Time
※It may vary depending on the quantity and timing, so please feel free to contact us.
Applications/Examples of results
For machine, factory, and building automation/monitoring systems.
Line up（2）
| Model number | overview |
|---|---|
| ADM-TJ30/BSD/BSIS+AVM | 95-20003-0000 (PN): Blind Spot Detection + 360 degree Around View Monitor |
| ADM-TJ30/BSD/BSIS+AVM +FCW/LDW+DM | 95-20003-1000 (PN): Blind Spot Detection + 360 degree Around View Monitor + Forward Collision Warning + Lane Departure Warning + Driver Monitoring System |
