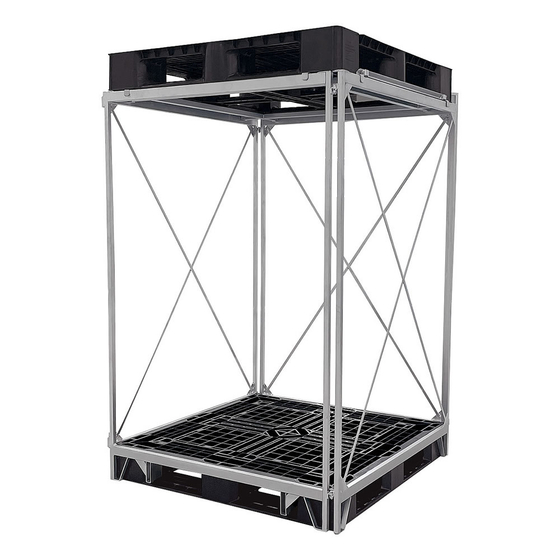

It is possible to load and unload items even in the assembled state.
You can use the internal dimensions of the pallet as they are. Stacking is not possible, resulting in wasted space. We solve all those logistics site problems at once. We achieve storage efficiency, compact storage, and easy assembly.
Inquire About This Product
basic information
■Specifications Assembly External dimensions: 1154×1154×1690mm Internal dimensions: 1100×1100×1475mm Weight: 38kg Maximum load capacity: 1000kg Material: Steel Finish: Zinc plating Panel Folded dimensions: 1143×1690×80mm Weight (with open side): 15kg Weight (without open side): 16kg Top cover Dimensions: 1154×1154×30mm Weight: 7kg
Price range
Delivery Time
Applications/Examples of results
The structure with high rigidity allows for stable multi-tier stacking even when products are loaded. With this product, pallet packaging that could only be laid flat until now can be stacked up to 3 tons, effectively utilizing storage space. As a result, it becomes possible to store more items in the same space, significantly improving storage efficiency.
