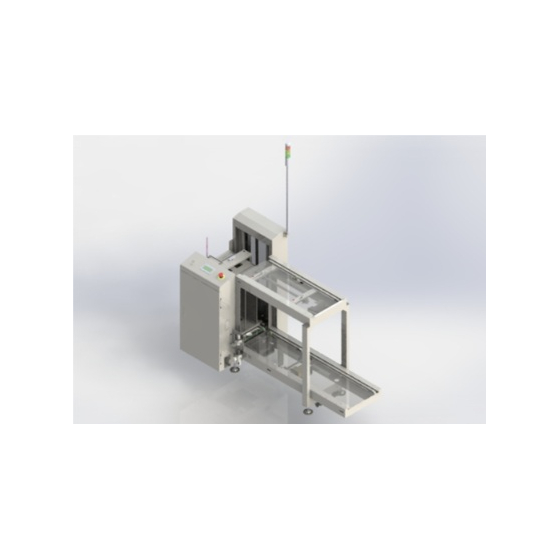

Chuck-compatible magazine-type substrate supply device "Setup completed in seconds."
ECS23MC
The strength of having a production site: cutting-edge industrial equipment born from it.
【Chuck-Compatible Magazine-Type Board Supply Device】 ◎ Advantages for Small-Batch Production (Variety and Low Volume) Achieves ultra-fast setup changes: By switching to a chuck method that does not use magazines with a single touch, the magazine changeover work during product switching can be reduced to zero. This dramatically reduces downtime on multi-product production lines. Reduces labor and costs: When used as a dedicated chuck machine, the magazine itself becomes unnecessary, thereby minimizing the labor involved in magazine management and initial investment costs. ◎ Advantages for Mass Production Stable supply with magazine method: During mass production, a reliable magazine type can be selected. By combining this with the high speed of the main unit, the capabilities of the mounter can be maximized. Komatsu Electronics' chuck-compatible loader is an extremely versatile and efficient solution that can meet the extreme needs of both "variety and low volume" and "mass production" with a single machine. This contributes to optimizing customers' capital investments and improving overall line efficiency.
Inquire About This Product
basic information
【Features】 - Significant reduction in setup time by adopting a chuck method - One-touch switching between chuck or magazine with TP - Standard equipped with magazine error-proofing - Function to switch magazine supply method - Option to select the starting position for magazine supply as upper or lower - High speed - Magazine exchange time: approximately 18 seconds *Standard mode - Capable of automatic changeover - PCB transport direction: right to left (left to right) - PCB transport reference: front side (back side) - PCB transport height: 900+50-25 (mm) - Compatible PCB dimensions: using magazine W50–250mm * L50–330mm - Using chuck W70–250mm * L70–330mm - PCB thickness: using magazine 0.5–2.0mm - Using chuck 0.5–2.0mm - Supply pitch: 1–9 stages - Mounted magazines: 2 on the upper level, 3 on the lower level or 2 on the upper level, 2 on the lower level - Power supply: AC100V - Air: 0.5MPa *Please note that specifications and appearance may change without notice for improvement purposes.
Price information
Negotiable
Delivery Time
※The delivery time may vary depending on the quantity, so please feel free to contact us.
Applications/Examples of results
Used in implementation lines, inspection machine lines, coating machine lines, laser lines, etc. There are many achievements in EMS (Electronic Manufacturing Services) companies and the production departments of various equipment manufacturers.
