This is a recommended safety product for those who need lockout devices like padlocks or feel that existing safety measures are cumbersome. [Free safety materials available]

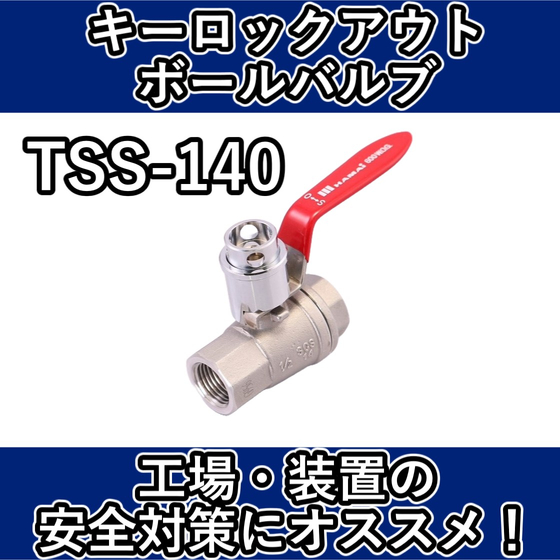

A full bore ball valve with a built-in spring that can be used regardless of orientation, equipped with a locking mechanism. It is also possible to lock it out using a padlock. ◆【Product Features】 - Can be locked in both closed and open positions. - The lock can be easily released with simple operation. - Even if the handle is accidentally bumped, it locks securely to prevent unintended opening and closing. - We produce in lots and keep stock, so we can deliver immediately. (*1) - The locking mechanism is integrated with the valve, allowing for space-saving use compared to external locking mechanisms. - Lockout is possible by passing a padlock through it. - Since it has a built-in spring, the locking mechanism can be used regardless of orientation. - There are also oil-free versions and versions without handle coating available. We have some in stock, so please feel free to consult us. (*1) Please consult us if you have a bulk order. There may be cases where stock is insufficient and delivery may take some time.
Inquire About This Product
Related Videos
basic information
◆【Model Number】 TSS-140 ◆【Product Specifications】 Nominal Diameter: 08A~25A Maximum Operating Pressure: 3.92MPa Operating Temperature Range: -20℃ to 160℃ Fluids: Water, Oil, Gas, etc. For more details, please contact [Tokyo Headquarters] TEL 03-3492-6655 <Receptionist / Second Sales Division>.
Price range
Delivery Time
Applications/Examples of results
Chemical and petroleum plant Cleaning hose Food factory Semiconductor manufacturing equipment and factory
catalog（7）
Download All Catalogs
![[Case Study] Major Semiconductor Manufacturing Equipment Manufacturer - Oil-Free Ball Valve Implementation Solution Case](https://image.mono.ipros.com/public/catalog/image/01/5ed/812799/IPROS5647366136262355490.jpg?w=120&h=170)
![[Case Study] Major Oil and Chemical Plant Company - Safety Measures Ball Valve Implementation Solution Case](https://image.mono.ipros.com/public/catalog/image/01/98e/812790/IPROS10848062022025408574.jpg?w=120&h=170)
![[Case Study] Major Construction Machinery Manufacturer - Onboard Ball Valve Implementation Solution Case](https://image.mono.ipros.com/public/catalog/image/01/bc8/812802/IPROS2628718781917561138.jpg?w=120&h=170)
CAD data（8）
| Model number | overview | File |
|---|---|---|
| 【3D】TSS-140-08Rc |
|
|
| 【3D】TSS-140-10Rc |
|
|
| 【3D】TSS-140-15Rc |
|
|
| 【3D】TSS-140-20Rc |
|
|
| 【3D】TSS-140-25Rc |
|
|
| 【3D】TSS-140-32Rc |
|
|
| 【3D】TSS-140-40Rc |
|
|
| 【3D】TSS-140-50Rc |
|
Company information
Since its establishment in 1927, Hamai has been a comprehensive valve manufacturer, offering a lineup of ball valves with excellent functionality that accommodates a wide range of fluids, pressures, and temperatures. With advanced design capabilities and outstanding manufacturing technology, we provide custom-designed high-performance valves. Additionally, we have been manufacturing genuine parts and supplying OEM products to major manufacturers for many years. Hamai's valves are produced in domestic factories, ensuring quality unique to "Made in Japan" and attentive service.
