PoE Isolated PD/PSE Power Module to Simplify Surrounding Circuits

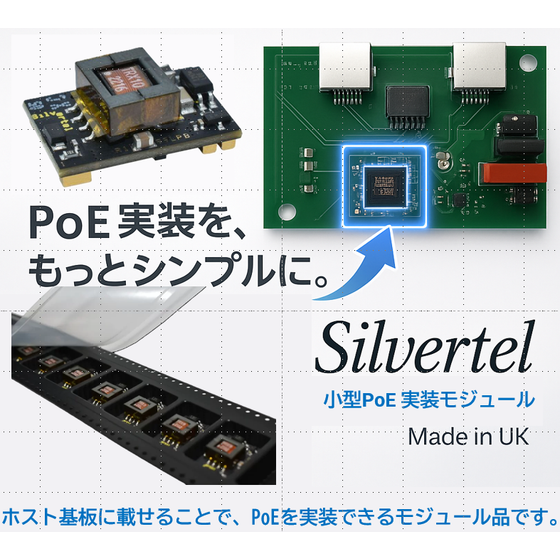

【Product Overview】 This module allows you to incorporate PoE circuitry into your product by mounting it on a host board. Even without expertise in PoE design, you can develop PoE-enabled products by adopting this module. We also provide design support from the circuit design stage, so please feel free to contact us. 【Benefits of PoE】 When supplying power in locations without outlets, if a LAN cable can be run, power can be supplied using PoE technology. It is utilized in outdoor surveillance cameras and IoT devices within large factories. 【Features】 ■ Significantly reduces the number of components through the module ■ Simplifies peripheral circuits ■ Contributes to product miniaturization due to its ultra-compact size ■ Available for purchase from a single unit ■ Excellent design support available
Inquire About This Product
Related Videos
basic information
Representative Product: Ag9900-LPB Achieving an ultra-compact size with dimensions of 21mm (length) × 14mm (width) × 8mm (height) for the PoE receiving module. Achieved approximately 40% size reduction compared to other companies' PoE solutions. ■ High Insulation Design Ensures an insulation withstand voltage of 1500V DC between input and output. ■ Diverse Output Voltage Variations Offers output models of 3V / 5V / 12V / 24V. ■ Built-in Isolated DC/DC Converter Generates stable DC output from PoE power. ■ Low Cost and Easy Implementation Design Requires few external components, making integration into designs easy. In PoE, there are PSE (Power Sourcing Equipment) that supplies power and PD (Powered Device) that receives power. Examples of PSE include PoE injectors and routing switches, while PD examples include surveillance cameras, IP phones, WiFi routers, and lighting. SilverTel is a leading company in PoE modules, designing and developing both PD and PSE modules, offering a wide range of products.
Price range
P1
Delivery Time
Applications/Examples of results
Target Products ■ Access Point ■ IP Phone ■ Routing Switch ■ Security Camera ■ Surveillance Camera (PTZ Camera) ■ Digital Signage ■ IoT Devices for FA ■ PoE Injector ■ RFID Reader ■ Audio System
Line up（7）
| Model number | overview |
|---|---|
| Ag9903MTB | Output voltage 3.3V / Output power 6W / SMT (Surface Mount Type) |
| Ag9905MTB | Output voltage 5.0V / Output power 9W / SMT (Surface Mount Type) |
| Ag9912MTB | Output voltage 12.0V / Output power 12W / SMT (Surface Mount Type) |
| Ag9924MTB | Output voltage 24.0V / Output power 12W / SMT (Surface Mount Type) |
| Ag9903LPB | Output Voltage 3.3V / Output Power 4.9W / Low Profile SMT (Low-Profile Surface Mount Type) |
| Ag9905LPB | Output voltage 5.0V / Output power 7W / Low Profile SMT (low-profile surface mount type) |
| Ag9912LPB | Output voltage 12.0V / Output power 10W / Low Profile SMT (low-profile surface mount type) |
