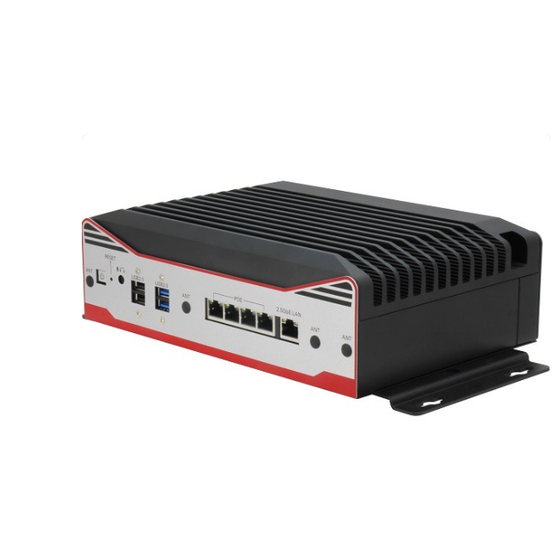

AAEON, designed for in-vehicle embedded systems, equipped with the 12th generation Core i7-1265UE, multi-PoE & fanless.
【AAEON VPC-5640S Features】 ■ Width 240 × Height 76 × Depth 167.1 mm, 3.05 liters ■ Fanless Core i7-1265UE CPU ■ DDR5 SODIMM up to 64GB ■ 4 x 2.5GbE PoE/PSE 802.3 af/at ■ 2 COM / 2 USB3.2 / 2 USB2.0 / 1 x 2.5GbE ■ 2 HDMI ■ Wide DC input 9V to 36V ■ Extended operating temperature -40 to 70℃ ■ Certifications: MIL-STD-810H, E-Mark ■ Supported OS: Windows 10, Win10 IoT, Linux
Inquire About This Product
basic information
Specifications ■CPU: Core i7-1265UE Fanless CPU ■Chipset: SoC ■Memory: 2x DDR5 SODIMM, up to 64GB ■Storage: 1 x 2.5" SATA SSD, 1 x M.2 2280 M-Key (PCIe[x4], NVMe) ■Expansion Slots: 1x M.2 2230 E-Key (Wi-Fi/BT), 2 x M.2 3052 B-Key (LTE/5G), 4x SIM Slot ■Ethernet: 1 x 2.5GbE, 4 x 2.5GbE PoE (IEEE802.3 at/af, up to 60W) ■I/O Connectors: 2 x HDMI, 2 x USB3.2 (Gen2), 2 x USB2.0, 2 x RS-232/422/485, DIO 8bit, 2 x Isolated CANBus FD, Audio Line out x 1, Mic in x 1 ■Case: Aluminum alloy ■Operating Temperature: -40 to 70°C ■Vibration/Shock: MIL-STD-810H ■Input Power: DC input 9-36V ■Certification: CE/FCC Class A, E-Mark
Price information
Open price
Delivery Time
※It may vary depending on the quantity and timing, so please feel free to contact us.
Applications/Examples of results
For machine, factory, and building automation/monitoring systems.
Line up（3）
| Model number | overview |
|---|---|
| VPC-5640S-IS-A10-00 | Core i7-1265UE |
| VPC-5640S-VS-A10-00 | Equipped with Core i7-1265UE and GPS (NEO-M9V) module. |
| Option | AC adapter (120W) |
catalog（1）
Download All Catalogs
