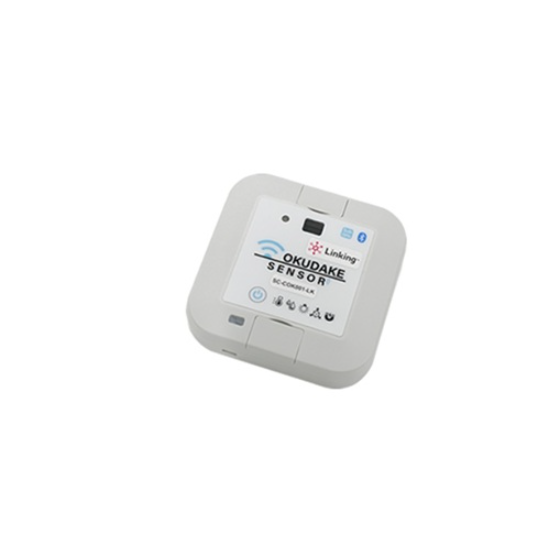

The "Just Place Sensor Link" enables IoT implementation simply by placing it in the desired location or facility.
Features ■ Data Transmission (Beacon, GATT Mode) In beacon mode, sensor data is transmitted every 4 seconds (data update interval). In GATT mode (equivalent to a typical BLE sensor), it performs data updates and notification actions for reading data at the configured cycle. * GATT mode operation is supported from FW 1.3. ■ Built-in Sensors Temperature: -10 to 60℃ Humidity (30℃): 0 to 80% RH, 80 to 100% RH Illuminance: 0.01 to 83,000 lx Acceleration (3-axis): ±16G, 0.5 Hz to 3.2 kHz Magnetic Sensitivity: 3.0 mT ■ Wireless Wireless Protocol: Bluetooth 5 Bluetooth Certified Design ID (QDiD): 108271 Transmission Power: Up to 8.8 dBm Operating Frequency: 2402 to 2480 MHz (40 channels) ■ Beacon Transmission Interval: 800 msec Beacon Format: Compliant with Linking Advertising Information Specification Beacon Transmitting Sensors: Temperature, Humidity, Battery Level, Magnetic (Open/Close) ■ GATT Available Data: Temperature, Humidity, Battery Level, Magnetic (Open/Close), Acceleration, Illuminance
Inquire About This Product
basic information
Specifications - Waterproof and dustproof equivalent to IP65 - Regulatory compliance: Equipped with a module certified under the Radio Law - Dimensions: W75 x D75 x H22 mm - Weight: Approximately 100g - Power supply: Coin battery (CR2450) Battery life: Approximately 8 months (beacon only) Approximately 7 months (when notifications for acceleration, humidity, and illuminance are enabled) *Battery replacement is possible by the user. *Battery life may vary depending on the settings for measurement intervals. Can be powered via USB. - Built-in sensors: Temperature: -10 to 60℃ [±0.4℃] Humidity (30℃): 0 to 80% RH [±3%], 80 to 100% RH [±4.5% (maximum)] Illuminance: 0.01 to 83,000 lx Acceleration (3-axis): ±16G, 0.5 Hz to 3.2 kHz Magnetic sensitivity: 3.0 mT - Measurement interval: 10 to 3,600 sec (60 minutes) - Can be set in 1 sec increments - In logger mode, can be set from 10 msec onwards
Price information
Open price
Delivery Time
Applications/Examples of results
Freezer, low-temperature warehouse, temperature management and measurement in food factories, etc.
Line up（1）
| Model number | overview |
|---|---|
| Just place the sensor link. | SC-COK001-LK |
