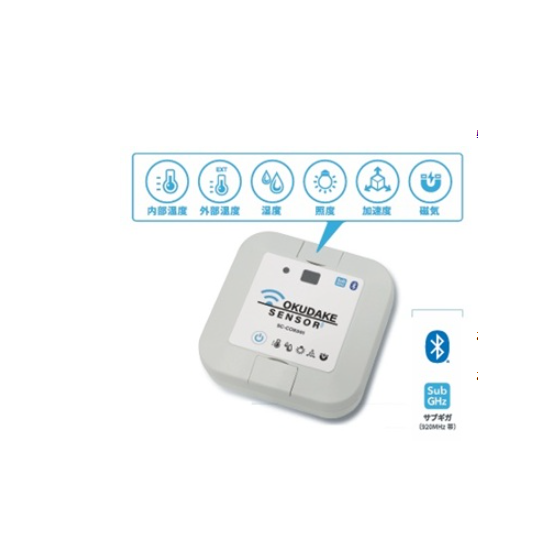

The plug-and-play sensor logger can be connected to a PC to view the accumulated logger data when needed.
Features ■ Data Storage The sensor data within the placed sensor is read at regular intervals and stored in the internal flash memory. It is capable of recording sensor data from a minimum of 10 msec to a maximum of approximately 30,000 points. (For example, data from a 3-axis accelerometer can be accumulated for about 24 hours at a 1-second interval.) ■ Data Output Log data can be exported by connecting to a PC and using the "Placed Assistant Tool," allowing it to be converted into a CSV file.
Inquire About This Product
basic information
Specifications Model number: SC-COK001-LG Temperature: -20 to 60℃ Humidity: 0 to 85% Waterproof and dustproof performance: Equivalent to IP65 EMC: VCCI class-B Hazardous substance regulation: Compliant with RoHS2 External dimensions: W75 x D75 x H22 mm Weight: Approximately 100g Power supply: Coin battery (CR2450) - Coin battery life: Approximately 1 year (when logging all sensor information every 2 seconds) *Battery replacement is possible by the user. - Can be powered via USB supply. Built-in sensors: 1. Temperature: -10 to 60℃ [±0.4℃] 2. Humidity (at 30℃): 0 to 80% RH [±3%], 80 to 100% RH [±4.5% (maximum)] 3. Illuminance: 0.01 to 83,000 lx 4. Acceleration (3-axis): ±16G, 0.5Hz to 3.2kHz 5. Magnetic sensitivity: 3.0 mT Regular measurement interval: 10 to 3,600 sec (60 minutes) - Can be set in 1 sec increments - In logger mode, can be set from 10 msec onward
Price information
Open price
Delivery Time
Applications/Examples of results
Freezer, low-temperature warehouse, temperature management and measurement in food factories, etc.
Line up（1）
| Model number | overview |
|---|---|
| Just place it sensor logger | SC-COK001-LG |
