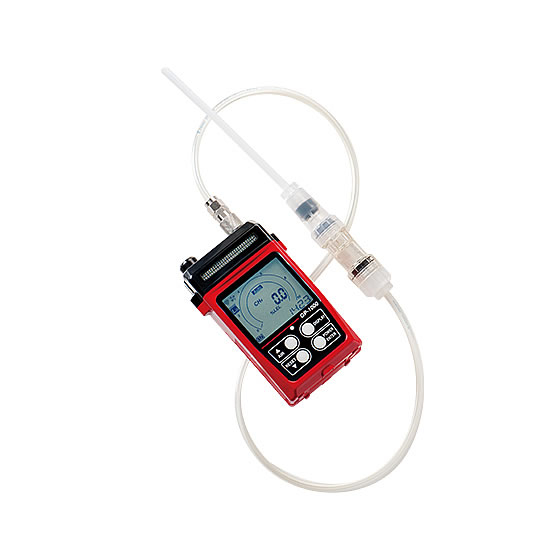

Detection of 25 types of gases with switchable (direct concentration reading) capability.
It is possible to detect and directly read the concentration of 25 types of gases, including methane, hydrogen, BTX (benzene, toluene, xylene), and alcohol-based gases, with a single device.
Inquire About This Product
basic information
■Specifications Model Number: MI10GP-2111R Target Gas: Flammable Gas (see above) Detection Principle: Contact combustion type Detection Range: 0–100% LEL Resolution: Low Range: 0.1% LEL High Range: 1% LEL Alarm Types: Gas Alarm: Latching, Two-stage Alarm Fault Alarm: Low flow, Sensor connection failure, Battery voltage drop, Circuit abnormality, Calibration range abnormality Alarm Operation: Gas Alarm: Intermittent buzzer, Alarm lamp (red) flashing, Gas concentration flashing Fault Alarm: Intermittent buzzer, Alarm lamp (red) flashing, Fault content display Alarm Set Values: 1st: 10% LEL, 2nd: 50% LEL Response Time: 90% response within 30 seconds Alarm Delay Time: Within 30 seconds Detection Method: Pump suction type Suction Flow Rate: 0.3L/min or more (Pump Low mode), 0.6L/min or more (Pump High mode) Display: LCD 7-segment numerical display + Bar meter (50 divisions) + Status information display 7-segment digital numerical display: 0–100% LEL Digital bar meter display: Auto range switching 0–10% LEL (Low Range) ⇔ 0–100% LEL (High Range) Power Supply: Four AA alkaline batteries
Price range
Delivery Time
Applications/Examples of results
- The detection gas type switching function allows for the detection of 25 types of flammable gases with a single unit (limited to calibration with methane and isobutane). - Calibration with gases other than methane and isobutane is also supported. (*The detection gas type switching function cannot be used. Please contact us for details.) - The pump booster function supports long-distance suction (suction flow rate: 0.3L/min ⇒ 0.6L/min). - By attaching a cartridge-type filter (sold separately) to the standard probe, it is possible to measure by removing hydrogen sulfide and silicone.
