3D modeling and drafting of products without drawings (e.g., manufacturing drawings for discontinued parts)

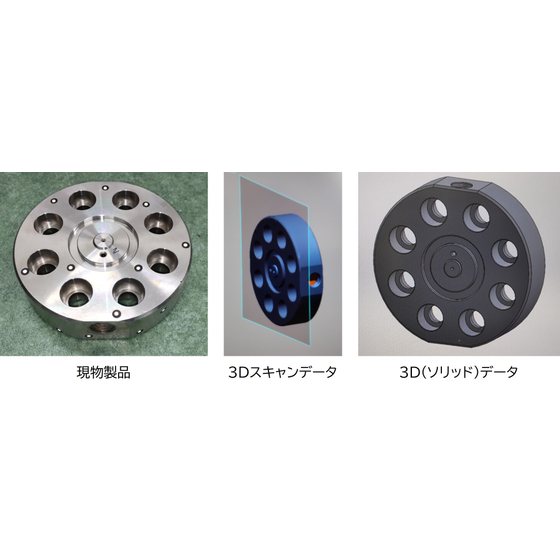

It will be possible to manufacture parts that are currently unavailable. We will utilize a 3D scanner to obtain three-dimensional data from the actual product. The scanned 3D data will be processed into solid data or 2D drawings so that it can be used for machining and other applications. For more details, please contact us.
Inquire About This Product
basic information
Creating drawings for parts without drawings, such as discontinued parts.
Price information
Please contact us.
Delivery Time
Applications/Examples of results
Impeller Creation of drawings for machine parts such as machine covers Manufacturing using a 3D printer
