Speed increase in the return direction is now possible, improving cycle time!

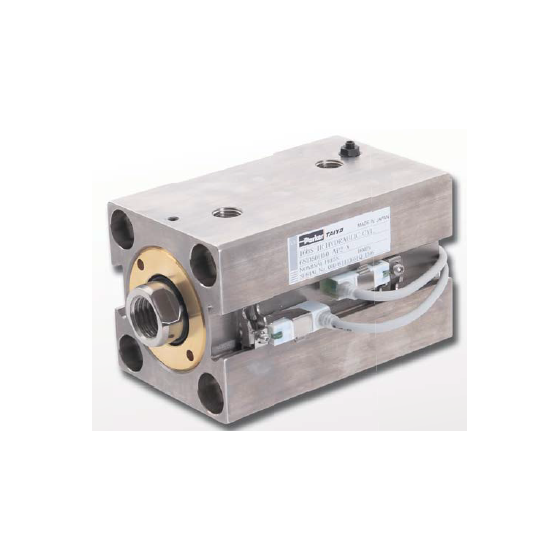

The "160S-1 Series" we handle is a thin hydraulic cylinder with a cushion on the head side. The cushioning mechanism reduces shock during stopping, and the cushion valve allows for adjustment based on usage conditions. Additionally, it enables speed increase in the return direction, improving cycle time. The installation space is an additional 20mm compared to the non-cushion type. 【Features】 ■ Reduces shock during stopping with the cushioning mechanism ■ Allows for cushion adjustment based on usage conditions with the cushion valve ■ Enables speed increase in the return direction, improving cycle time ■ Installation space is an additional 20mm compared to the non-cushion type *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
【Specifications (Partial)】 ■Operating Pressure: 16MPa ■Maximum Allowable Pressure: 16MPa ■Pressure Resistance: 24MPa ■Minimum Operating Pressure: 0.3MPa ■Operating Speed Range: 8 to 100mm/s ■Stroke Range: 15 to 80mm *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please download the PDF or feel free to contact us.
