Achieving energy savings by preventing heat inflow and outflow.

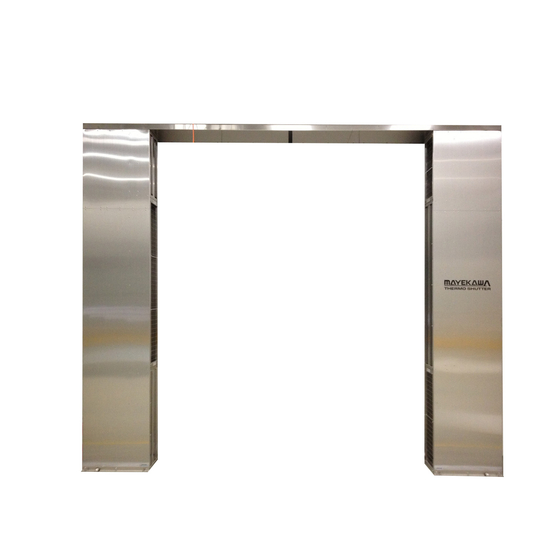

◆Overview An air curtain that blocks the entry and exit of warm and cold air at openings with temperature differences. It prevents "warm air inflow from outside" and "cold air outflow from inside" at openings in refrigerated warehouses where food production and distribution take place, solving problems such as temperature rise of stored items and increased running costs of cooling equipment. ◆Reasons for Selection High blocking efficiency due to horizontal circulation flow type The bottom, where cold air outflow is greatest, and the top, where warm air inflow is most likely, are effectively blocked by strong horizontal wind circulation, producing significant effects with minimal energy consumption. Energy loss without measures, noticeable energy-saving effects The "Thermo Shutter" has been adopted in numerous industries and has received high praise. Compared to before installation, energy-saving rates are evident, with 31% in logistics center warehouses, 24% in truck yards, and 33% in frozen warehouses. Blocking outside air to protect employees from extreme heat and cold To prevent the mixing of heat at openings between general air-conditioned workspaces in factories and outside air, it stabilizes indoor temperatures and contributes to improving employee work efficiency. For more details, please contact us or download the catalog.
Inquire About This Product
Related Videos
basic information
○External dimensions: W600×L300×H2,000～4,000mm ○Standard opening: ～3,000mm ○Main material: Stainless steel (SUS304) hairline finish (excluding internal components such as fans) ○Power supply: Three-phase AC200V 50Hz/60Hz ○Power consumption: 0.66～1.68kW ○Accessories: Control panel ○Options: Ceiling sealing plate, sliding packing, fan inverter *Height dimensions are available in increments of 100mm. Custom dimensions can also be accommodated. *By installing the optional ceiling sealing plate, the spread of air is reduced, making the upper barrier more effective. *Additionally, the sliding packing is necessary when there is a gap between the wall (door) and the main body. ●For more details, please contact us or download the catalog.
Price information
Please contact us.
Delivery Time
Applications/Examples of results
[Case Studies] Refrigerated and Frozen Warehouses, Logistics Centers, Truck Yards ● For more details, please contact us or download the catalog.
