In a world of 240,000 rpm, we bring design theory into reality.

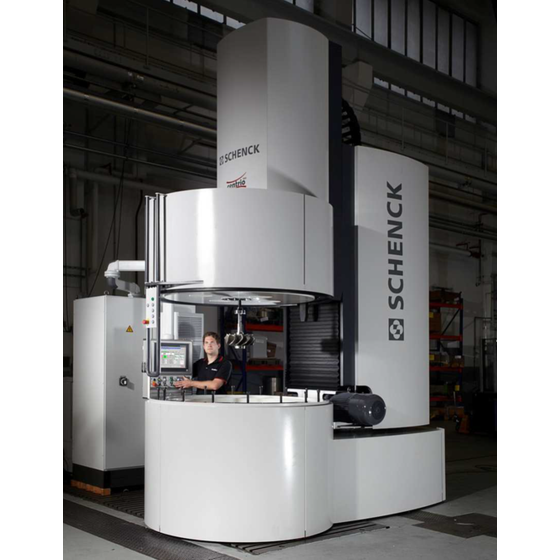

Our company owns the high-performance testing device "Centorio 100," which can handle ultra-high-speed rotation tests of up to 240,000 rpm and high-precision evaluations in environments up to 250 °C. We conduct contract evaluations under various conditions, including verification tests for plastic and elastic deformation of electric vehicle (EV) motors, as well as destructive tests, durability tests, imbalance evaluations, and vacuum tests. We confirm the consistency between our customers' design calculations and actual measured behaviors, supporting the improvement of reliability.
Inquire About This Product
basic information
Specifications Drive System: Two Gearbox Configuration (90W each) PL12 Gearbox Type: Maximum Rotational Speed 63,000 rpm (Solid Shaft Maximum Load 400kg, Hollow Shaft 200kg) PL4 Gearbox Type: Maximum Rotational Speed 240,000 rpm (Maximum Load 10 kg) Test Temperature Range: Room Temperature to 250°C (Controlled within the Chamber) Test Atmosphere: Atmosphere/Vacuum (Achievable Pressure Below 1 mbar, Vacuum Pumping within 10 Minutes) Cooling Method: Air Cooling (Natural Cooling) Compatible Rotor Size: Maximum Diameter φ1000mm, Length 820mm Measurement Functions: Unbalance Measurement, Deformation Behavior Analysis, High-Speed Camera Shooting Support Data Acquisition: Graph Waveform and Raw Data Output (Report Format PDF/CSV) Measurement Environment: Room Temperature °C Constant Control, Testing in Vacuum Chamber Test Condition Design: Customer Specification / Our Proposal Both Acceptable Long-Term Testing: Continuous Operation for Extended Periods (High-Low Speed Cycle Operation) Additional Equipment: Three-Dimensional Measuring Machine (Separate Room), High-Speed Camera Shooting Equipment
Price range
Delivery Time
Applications/Examples of results
- High-speed durability testing of motors/rotors for electric vehicles - Deformation and fracture testing of gears, spindles, and turbo mechanism components - Testing for confirmation of plastic and elastic deformation under high-temperature conditions - Research and development/material evaluation (in fields such as aerospace, power generation turbines, and industrial machinery) - Verification testing of analysis models in the design phase
catalog（1）
Download All Catalogs
Company information
Nagahama Manufacturing Co., Ltd. is engaged in the design, manufacturing, and sales of balancing machines. We will continue our unwavering efforts to provide our customers with excellent technology and reliable quality products and services, and to share the joy of this with our customers and suppliers.
