Super Metal Belzona 1111

last updated：Nov 14, 2025

Strongly protects the pump impeller and the inner surface of the water box. It can be easily applied in a semi-liquid form and exhibits high durability, withstanding immersion at temperatures up to 60°C.

Ceramic-filled lining agent that protects the interiors of pumps, valves, heat exchangers, etc., exposed to erosion and corrosion. It is solvent-free, highly safe, and exhibits excellent performance even under immersion conditions, achieving heavy corrosion resistance and long equipment lifespan. Available in two colors, making it easy to prevent pinholes. 【Features】 ■ Semi-liquid that can be brush-applied easily to complex pump interiors ■ Long-term protective effect in immersion environments (water chambers, tube sheets) ■ Can be applied to drinking water contact areas, certified by UK WRAS, among others ■ Solvent-free, ensuring a safe working environment with no shrinkage or distortion during curing [Demo and Sample Distribution] If you would like a demo or sample, please fill in your intended use and conditions in the "Contact Us" section below and send it to us. *Please note that we may decline to respond depending on various conditions.

Inquire About This Product

basic information

[Instructions] □ Surface Preparation: Remove rust from the corroded areas of the metal using blasting, grinders, etc., and roughen the surface. □ Degreasing Cleaning: Remove moisture, oil, dirt, etc., using a cleaning agent. □ Mixing: Take the main agent and hardener in the specified mixing ratio on a board made of plastic or similar material and mix thoroughly to avoid color unevenness. □ Application: Initially apply to the prepared surface by rubbing it in, then apply to the necessary thickness. [Product Information] □ Form: Paste "after mixing" □ Color: Gray □ Packaging: 1 kg "main agent and hardener set", 2 kg "main agent and hardener set" □ Mixing Ratio (by weight): Main agent 5 : Hardener 1 □ Curing Time: 20 hours at 25℃ [Product Properties] □ Adhesive Strength (Iron): 19.2 MPa □ Heat Resistance: 200℃ (dry) □ Shelf Life (unopened): 5 years

Price information

Please contact us.

Price range

Delivery Time

Applications/Examples of results

- Piping - Various flanges - Pump casing - Pump parts - Pump impeller - Shaft - Tank - Tank nozzle - Screw thread - Bearing housing - Engine block

Detailed information

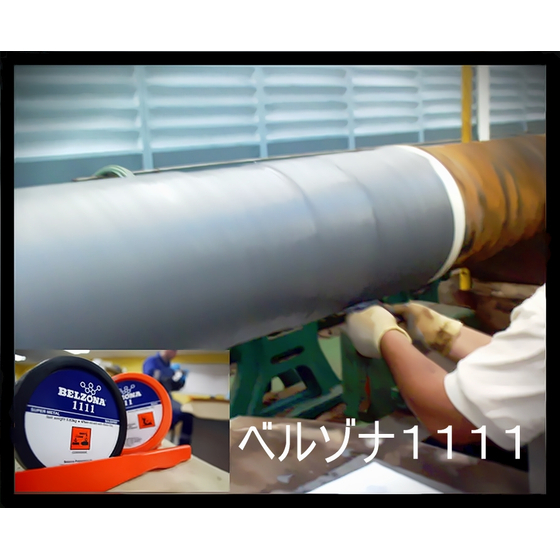

Pipe repair: Since no flame is required, it can be safely used in areas with less thickness.
Shaft repair: For small ones, machining can be done using a lathe, and for larger ones, repair is possible using a molding method combined with release agent 9411.
Flange installation: The flange surface can also be easily repaired using a jig.
When bonding the plate: It can be used as a high-strength adhesive during the bonding of the piping reinforcement plate.
Pump parts repair: Repairs that require precision, such as the gland section, can be accommodated as machining is possible.
