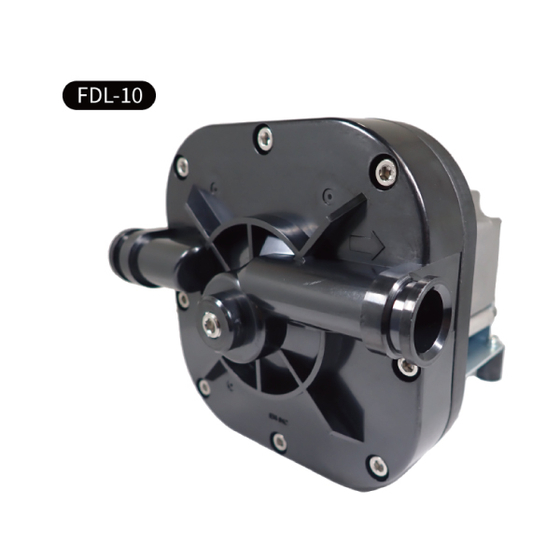

●Small diaphragm pump 'FDL-10' [liquid specification]
Model number FDL-10 *AC/DC specifications available
The FDL-10 small diaphragm pump for liquids is compatible with AC/DC, has a maximum operating pressure of 400 kPa G, and a self-priming height of 3 m.
The compact diaphragm pump FDL-10 is a liquid diaphragm pump compatible with AC/DC! It is small and lightweight, and its multi-chamber diaphragm design significantly reduces pulsation. The wetted materials are based on highly corrosion-resistant thermoreversible resins and thermoreversible elastomers, and can be changed to other materials. It comes standard with variable speed functionality (external control) and alarm detection features (overload, overvoltage, undervoltage, overheating). A variety of options are available, including AC motors (single-phase and three-phase), connection positions (orientation), pressure switches, built-in relief valves, external volume adjustment units, anti-vibration stands, and power cords (AC). 【Features of the compact diaphragm pump FDL-10】 ■ Equipped with a brushless motor for DC operation ■ Variable speed operation and alarm output are available as standard features ■ Small and lightweight, making it easy to integrate into devices ■ Available in AC/DC specifications ■ Self-priming: 3m (suction lift) ■ Highly corrosion-resistant materials ■ Variable speed functionality (standard) ■ Alarm detection functionality (standard) ■ Options can be changed to suit device specifications ■ Made in Japan with high performance and reliability *Please start by downloading the PDF materials! For more details, feel free to contact us by email or phone with any inquiries!
Inquire About This Product
basic information
【Specifications (FDL-10)】 ■Maximum flow rate: 12.0L/min or more ■Suction lift (self-priming): 3m ■Maximum pressure: 400kPaG (0.4MPa) ■Connection diameter: R1/2 (standard) ■Suction temperature range: 0℃ to 70℃ ■Operating environment: Temperature 0 to 40°/Humidity RH85% or less ■Motor power supply voltage: DC24V (standard) *AC specifications (100/110V/200/220V) can be changed ■External operation control: External input voltage DC0 to 5V/PWM control/External volume adjustment ■Rated current: 6A ■Operating speed (RPM): 1000RPM ■Rated output: 125W ■Insulation class: E ■Weight: 2.5kg *Please first use the PDF document download! For more details, feel free to contact us by email or phone with any inquiries!
Price information
It may vary depending on the quantity, so please feel free to contact us. We are always happy to provide a quote!
Price range
Delivery Time
※It varies depending on the time, so please feel free to contact us.
Applications/Examples of results
【Main Uses】*Example of Implementation ■Sampling-related ■Liquid delivery-related ■Various circulation pump systems, etc. *Please start by downloading the PDF materials! For more details, feel free to contact us via email or phone with any inquiries!
