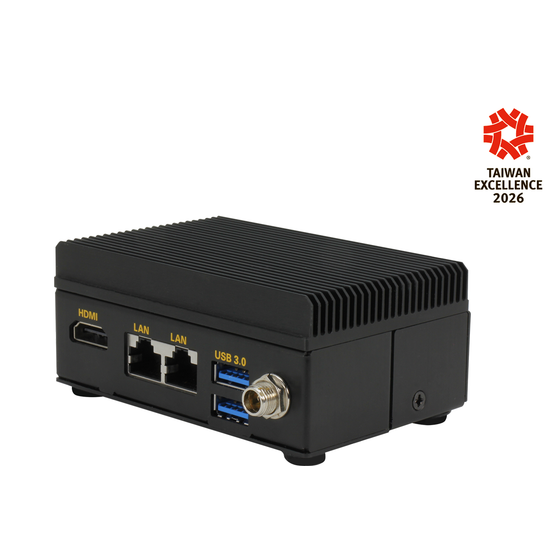

AAEON Industrial Ultra-Compact PC equipped with 13th generation Intel Core i7-1365UE
Features ● Equipped with Intel 13th generation Core i7-1365UE ● Onboard LPDDR5x 16GB memory ● HDMI x 1 ● 2.5GbE x 1, GbE x 1 ● USB 3.2 Gen2 x 2 ● M.2 2280 M-Key x 1 (PCIe [x2]) ● DC12V input
Inquire About This Product
basic information
【CPU】Equipped with Core i7-1365UE 【Chipset】SoC 【Memory】LPDDR5x 16GB onboard 【Storage】M.2 2280 M key (PCIe[x2]×1) 【Front I/O】2.5GbE RJ-45×1, 1GbE RJ-45×1, USB 3.2 Gen 2×2, HDMI 1.4b×1, DC jack 【Internal I/O】4-pin smart fan 【Input Power】DC 12V 【Supported OS】Windows 10 (64bit), Ubuntu 22.04.3 (Kernel 6.2) 【Dimensions (W×D×H)(mm)】95.5mm×69.5mm×45.4mm (with CPU cooler model) 【Operating Temperature】0~50℃ (with air flow of 0.5m/s)
Price information
Others
Delivery Time
Applications/Examples of results
Applications: machine control, automation systems, environmental monitoring systems, kiosk terminals, inspection equipment, digital signage, gaming consoles, controllers, data loggers, and many others.
Line up（1）
| Model number | overview |
|---|---|
| 【 DENEXT-RAP8-EBX-A001】 | Intel Core i7－1365UE, Onboard LPDDR5x16GB, HDMI1.2 x１,2.5GbE x 1,GbE x 1,USB3.2 x 2,12VDC |
