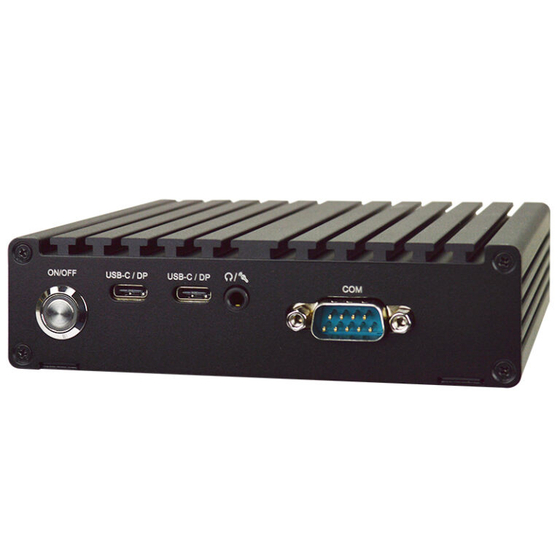

Jetway Intel N97 equipped industrial compact fanless PC, compatible with DC 12~19V input.
Features ● Equipped with Intel Processor N97 ● Memory DDR5 SO-DIMM x 1 slot (sold separately) ● Supports 4K resolution display (DP Alt Mode support) ● M.2 M-Key x1 (NVMe), M.2 E-Key x1 ● 2.5GbE ports x2 ● Memory, storage, and OS not included ● Operating temperature: -20°C to 60°C (AC adapter supports 0 to 40°C)
Inquire About This Product
basic information
【CPU】 Equipped with Intel Processor N97 【Chipset】 SoC 【Supported Memory】 DDR5 4800MHz SO-DIMM x1 slot (up to 32 GB) (sold separately) 【Storage】 M.2 2260/2280 M-Key (NVMe) x1 (sold separately) 【Front I/O】 Power button, USB 3.2 Type C x2 (supports DP ALT mode) 【Rear I/O】 2.5GbEx2, HDMI 2.0 x1, DP 1.4 x1, USB 3.2 Gen 2 x2, DC jack, GND Hold x1 【Expansion Slot】 M.2 2230 E-Key x1 (CNVio) 【Input Power】 DC 12~19V (DC jack) 【Supported OS】 Win 11/10 (64bit), Linux 【Dimensions (W x H x D) (mm)】 129.0 x 34.0 x 109.4 【Mounting Method】 Wall mount 【Operating Temperature】 -20°C ~ 60°C (with 0.7m/s airflow - main unit) *AC adapter operates at 0~40°C 【Certification】 CE/FCC Class A/LVD *This model does not include memory, storage, or OS.
Price information
Others
Delivery Time
Applications/Examples of results
Applications: machine control, automation systems, environmental monitoring systems, kiosk terminals, inspection devices, digital signage, gaming consoles, controllers, data loggers, and many others.
Line up（3）
| Model number | overview |
|---|---|
| 【B420UADN1-A111】 | Equipped with Intel N97, 2.5Gb x2, HDMI 2.0 x1, DP 1.4 x1, USB 3.2 Gen 2 x2, USB 3.2 Type C DP x2, M.2 M/E key, Intel PTT (fTPM) |
| 【B420UADN1-A211】 | Equipped with Intel N97, 2.5GbEx2, HDMI 2.0x1, DP 1.4x1, USB 3.2 Gen 2x2, USB 3.2 Type C DPx2, M.2 M/E key, TPM2.0. |
| 【AC adapter set for B420UADN1】 | AC adapter for B420UADN1 + AC cable set for Japan |
