It is a reliable warning system that strongly supports on-site safety and prevents accidents from occurring in advance!

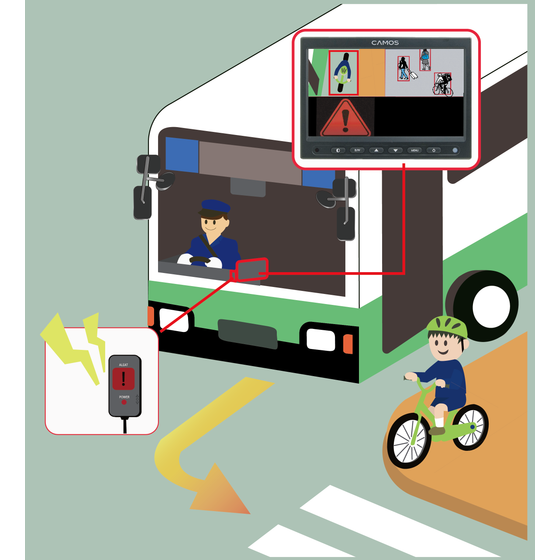

Bus driving relies on the driver's extensive experience and high safety awareness. While driving, it is necessary to ensure the safety of passengers and pay attention to the surrounding conditions, including pedestrians and bicycles. However, no matter how experienced a driver is, there are limits to what can be confirmed with the "human eye." Blind spots that are not visible in mirrors and minor oversights can lead to unexpected accidents. Buses are approximately twice the length of a typical passenger car and are wider, with the driver's seat positioned high, making it difficult to see directly below or to the sides. The "BFV203" from Pal Giken covers these "blind spot dangers" and supports safe driving. By simply retrofitting two AI cameras, a speaker, a monitor, and an identification unit to your existing vehicle, installation can be completed in a short time. Once the AI detects pedestrians or bicycles in the blind spots, it provides warnings through audio and video, assisting the driver in visual confirmation and firmly supporting safe driving. *For more details, please download the PDF or feel free to contact us.*
Inquire About This Product
basic information
【Function】 Detection targets: pedestrians, people riding motorcycles/bicycles, etc. Detection range: approximately 7m forward to approximately 12m backward (varies depending on installation position) Detection environment: illuminance of approximately 15 lux or more (about the level of streetlights at night) 【Identification Unit】 Power consumption: approximately 7.5W Input: +4/-1 (vehicle speed pulse) Output: FET +2 (maximum 0.2A, with overcurrent protection) Permissible voltage: +60V Dimensions and weight: 157.8×89.4×43.5mm / approximately 780g Temperature range: operating -20 to +65℃, storage -40 to +90℃ 【Camera】 NTSC/CMOS approximately 350,000 pixels Dimensions and weight: 23×23×32.6mm / approximately 54g Temperature: operating -20 to +70℃, storage -30 to +80℃ 【Indicator】 Warning: red LED 15×20mm Status: red LED φ3mm Dimensions and weight: 35×12×75mm / approximately 20g 【Monitor】 NTSC/7 inches (154×86mm) Dimensions and weight: 174×125×27mm / approximately 0.5kg Temperature: operating -10 to +60℃, storage -20 to +70℃
Price range
Delivery Time
Applications/Examples of results
- Detect pedestrians, bicycles, and motorcycles entering the blind spots on the side and rear of the bus using AI image processing. - Warn the driver with sound and visuals to prevent accidents involving entrapment or contact. - Detect the approach of passengers at bus terminals and stops to assist with safety checks. - Operate even at night (with illumination of 15 Lux or more), accommodating early morning and nighttime operations. - Adjust the detection range according to operational conditions such as stopping and starting. - Install cameras on the left and right sides and rear to cover the blind spots created by the bus's long body.
