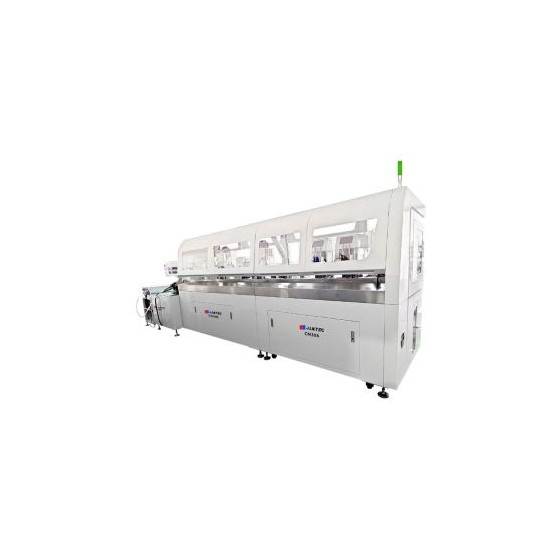

JAM Internal Wiring Wire Processing Machine Fully Automatic Terminal Crimping Machine CN308
A fully automatic processing machine capable of handling multiple processes at once, such as cutting wires, stripping, printing on tubes, and crimping tube-insert terminals onto wires.
The system is modularized, allowing for flexible configuration changes according to user specifications and production conditions. ● One crimping machine supports 10 types of loose terminals ● Excellent cost performance ● Supports up to 36 types of wires ● Dies are planned to be Nichifu certified products
Inquire About This Product
basic information
Function: Wire fixed-length cutting, both ends stripping, printing on tubes, inserting tubes into wires, crimping at both ends Capacity: Wire cutting, tube printing/inserting, crimping at both ends: approximately 8 seconds per unit (450 units per hour) Wire size: 0.3 to 5.5 mm², compatible with up to 36 types of wires Wire cutting length: 1.0 mm + set cutting length × 0.002 Stripping length: 0.1 to 17.0 mm Compatible terminals: Bare terminals, insulated terminals, ferrule terminals, continuous terminals Compatible marking tubes: Round tubes, flanged tubes Crimping capacity: 30,000 N (equivalent to 3 tons) equipped with a servo crimping machine Power supply: Three-phase AC 220V 50/60Hz with transformer Compressed air: 0.5 MPa 160 NL/min (please use clean, dry air) Dimensions/Weight: W6500 mm × D4800 mm × H1900 mm / 1800 kg
Price information
Please contact us.
Delivery Time
Applications/Examples of results
Please contact us.
