Support stand (screw-fixed, clamp-fixed) ・ dedicated arm
Support Stand PA-10DX PA-10AX Dedicated Arms LA-16QA LA-17QA LA-37QA LA-19Q
It is a fixed column made of aluminum material and a dedicated arm.
The PA-10AX support stand is a post that is fixed to the desk surface with a clamp, while the PA-10DX is a post that is fixed to a horizontal surface (such as on the desk) with screws. The height of the post is approximately 600mm, allowing for the possibility of arranging monitors in two tiers by preparing two separately sold arms. The separately sold dedicated arms can be selected from four types depending on the movement method and the conditions of the mounted monitors. The keyboard arm KA-01A can be used, allowing for a configuration of monitor + keyboard arm. *For details, please check the product information separately. *The product is manufactured by Modern Solid (MODERNSOLID).
Inquire About This Product
basic information
■Clamp fixed post PA-10AX Load capacity: less than 30KG (excluding arm weight) ■Horizontal screw fixed post PA-10DX Load capacity: less than 30KG (excluding arm weight) ■Dedicated arm LA-16QA Vertical angle adjustment Load capacity: less than 8KG ■Dedicated arm LA-17QA Vertical and horizontal angle adjustment Load capacity: less than 8KG ■Dedicated arm LA-37QA Vertical and horizontal angle adjustment Load capacity: less than 14KG ■Dedicated arm LA-19Q Vertical angle adjustment Load capacity: less than 6KG - Compatible with VESA standards 75×75mm and 100×100mm (LA-19Q only supports 75×75mm) - Secure the arm by passing screws through the nuts located in the post groove from the back of the arm. *Please ensure that the installation is fixed to a location with sufficient strength to withstand the total weight of the equipment and the load during movement. *The load capacity is based on typical PC monitors; depending on the shape and weight balance of the equipment, installation may be difficult even within the load capacity range.
Price range
Delivery Time
Applications/Examples of results
Fixed to counters and desks in stores, exhibitions, and medical settings. Used for fixing equipment in manufacturing and logistics, or for use on lines. Screw-fixed posts are attached to the ceiling.
Detailed information
-
1
-
2
-
3
-
4
-
5
-
6
-
Example
-
Example
Line up（7）
| Model number | overview |
|---|---|
| PA-10AX | Clamp fixed post stand, height approximately 600mm, photo 1. |

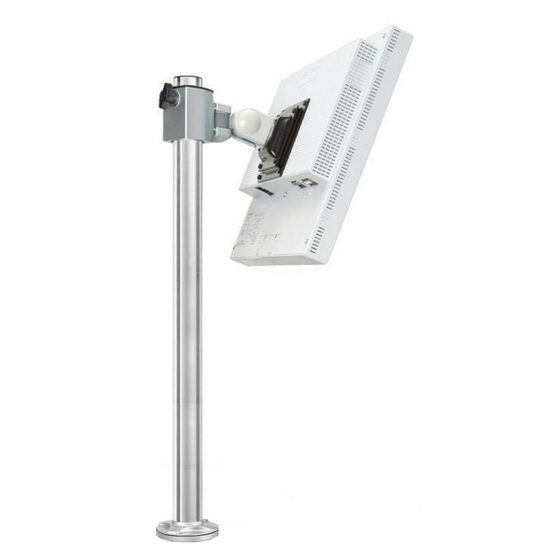

| PA-10DX | Horizontal plane screw-fixed pillar stand, height approximately 600mm, photo 2. |
| LA-16QA | Arm for pillar stand, vertical angle adjustment, load capacity under 8KG, photo 3. |
| LA-17QA | Arm for support stand, vertical and horizontal angle adjustment, load capacity under 8KG, photo 4. |
| LA-37QA | Arm for pillar stand, vertical and horizontal angle adjustment, load capacity under 14KG, photo 4. |
| LA-19Q | Arm for support stand, resin hemispherical joint, load capacity under 6KG, photo 5. |
| KA-01A | Keyboard arm for support stand, load capacity approximately 5KG, photo 6. |
