Long monitor arm with built-in gas spring, HA series
- This is a large arm that can extend 1800mm, fixed to high-strength wall and ceiling surfaces. - The expected monitor size for installation is 26 inches*, and the forearm joint moves up and down using a gas spring. - Wiring can be routed through the arm, allowing for use without compromising the appearance after installation. - The lineup is divided based on the load capacity of the arm. - Other wall-mounted arms include the HA-501, which incorporates gas springs in the front and rear joints, and the HA-625, designed for lighter loads with a size limited to 1400mm. *The product is manufactured by Modern Solid (MODERNSOLID).
Inquire About This Product
basic information
Wall-mounted fixed long arm *All compatible with VESA standards 75×75mm and 100×100mm ■Model number: HA-305 Load capacity: 1–6KG ■Model number: HA-325 Load capacity: 6–12KG ■Model number: HA-501 Load capacity: 1–7KG (Arm length approximately 1490mm) ■Model number: HA-625 Load capacity: 2–5KG (Arm length approximately 1450mm) Ceiling-mounted fixed long arm *All compatible with VESA standards 75×75mm and 100×100mm ■Model number: HA-307 Load capacity: 1–6KG ■Model number: HA-327 Load capacity: 6–12KG *For product details, please check the product catalog or the Wintechno website.
Price range
Delivery Time
Applications/Examples of results
Medical (laboratories, patient rooms, etc.) FA/Industry (for equipment, factories, etc.)
Detailed information
-
1
-
2
-
3
-
4
-
5
-
6
Line up（6）
| Model number | overview |
|---|---|
| HA-305 | Wall-mounted fixed long arm, load capacity 1-6KG, photo 1. |
| HA-307 | Ceiling-mounted fixed long arm, load capacity 1-6KG, photo 2. |
| HA-501 | Wall-mounted fixed long arm, load capacity 1-7KG. Photo 3 *Monitor sold separately. |
| HA-625 | Wall-mounted fixed long arm, load capacity 2-5KG. Photo 4 *Monitor sold separately. |

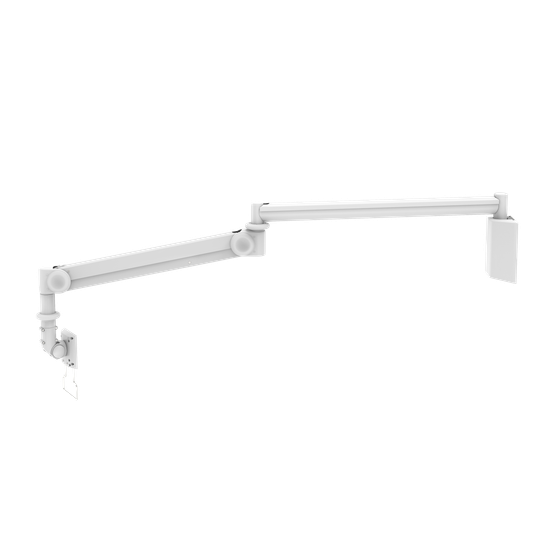

| HA-325 | Wall-mounted fixed long arm, load capacity 6-12KG, photo 5. |
| HA-327 | Ceiling-mounted long arm with a load capacity of 6 to 12 kg, photo 6. |
catalog（2）
Download All Catalogs
Company information
Wintechno Co., Ltd. is engaged in the development, design, and sales of arms for LCD monitors, as well as OEM business, purchasing and selling computer parts, and wholesale of other computer peripherals. Additionally, we also handle wall-mounted arm installations and air conditioner cleaning. Please feel free to contact us if you have any requests.
