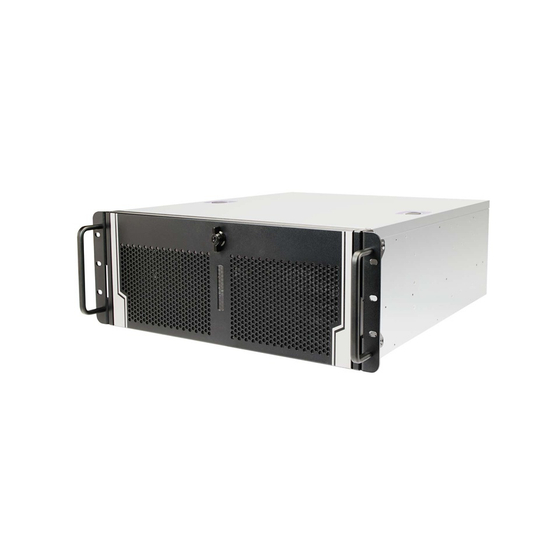

4U Rackmount Model, Compatible with 12th/13th/14th Generation Core i, Industrial BTO PC, GPU Installable, Customizable from One Unit!
Features ● Equipped with Intel Core i9-13900E / i5-13500E *Optional change available ● Equipped with 64GB memory *Optional change available ● Equipped with 512GB 3D TLC SATA SSD *Optional change available ● Equipped with Windows 11 IoT Enterprise *Optional change available ● Equipped with HDMI x2, DP x2 ● Rear I/O includes USB 3.2 (Gen2) x3, USB 3.2 (Gen1) x2 ● BTO support available from one unit
Inquire About This Product
basic information
【CPU】Core i9-13900E / i5-13500E *optional change available 【Chipset】Intel Q670 【Memory】DDR5 U-DIMM 32GB×2 (total 64GB) *optional up to 192GB 【Storage】2.5-inch 3D TLC 512GB SATA SSD *optional change available 【Rear I/O】Line-in x1, Mic-in x1, Line-out x1, RS-232/422/485 x1, GbE LAN x2, 2.5GbE x1 【Expansion Slots】PCIe [x16] (Gen5) x1, PCIe [x1] (Gen3) x1, PCIe [x4] Slot (Gen4) x1, PCIe [x16] x1 (signal is x4, Gen4), PCI x3, M.2 3042/3052 B-Key x1, Mini PCIe Slot x1, Micro SIM Card Slot x1 【Power Supply】850W ATX *optional change available 【OS】Windows 11 IoT Enterprise 2024 pre-installed *optional change available *For details, please refer to the data sheet.
Price information
Others
Delivery Time
Applications/Examples of results
Applications: machine control, automation systems, environmental monitoring systems, kiosk terminals, inspection devices, digital signage, game consoles, controllers, data loggers, and many others.
Line up（2）
| Model number | overview |
|---|---|
| SYS-R400N-Q6703L-13900E-Win11-VN | Intel Core i9-13900E. Memory 64GB. 512GB 2.5-inch SATA SSD. Win11. GbE x 2, 2.5GbE x 1. |
| SYS-R400N-Q6703L-13500E-Win11-VN | Intel Core i5-13500E. Memory 64GB. 512GB 2.5-inch SATA SSD. Win11. GbE x 2, 2.5GbE x 1. |
