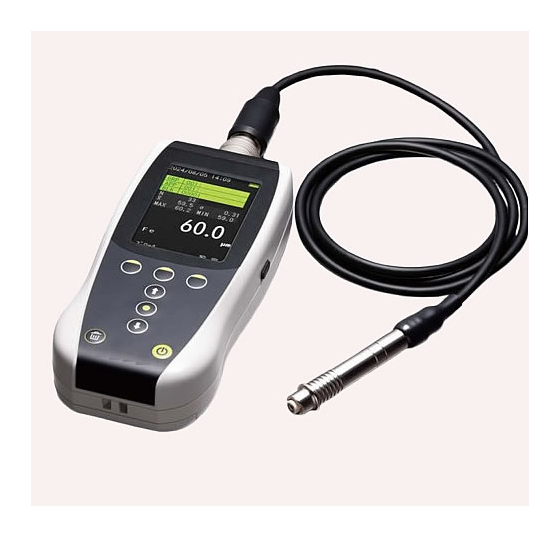

Standard model of probe-type thickness gauge (M70L-600SK)
● Higher model with Bluetooth that enhances data retention and output capabilities (M70L-600EK) ● Electromagnetic and eddy current probes sold separately (required option) ● Block/group statistical calculation function
Inquire About This Product
basic information
■Specifications Model Number: M70L-600SK M70L-600EK Display Resolution: Less than 100μm: 0.1μm, 100μm or more: 1μm (when displayed in μm) Less than 10mm: 0.01mm, 10mm or more: 0.1mm (when displayed in mm) Display Method: Digital (2.7-inch full-color LCD) Data Memory Capacity: 50,000 points 100,000 points Application Memory Capacity: 50 applications (per probe) External Output: USB-C USB-C Bluetooth Power Supply: 1.5V (AA alkaline battery*1) x 4 Power Consumption: Maximum 1W Battery Life: 70 hours*2 Operating Temperature and Humidity Range: 0 to 40°C, below 85% RH (no condensation) Additional Functions: Base correction, adjustment, application selection, upper and lower limit settings, unit switching, measurement method switching, language switching, statistical calculations (block/group), measurement data storage, automatic power off, backlight, date and time setting, display content switching, etc. Dimensions and Weight: 70 (W) x 155 (D) x 35 (H) mm, 0.2 kg Included Accessories: Iron base (for Fe probe), aluminum base (for NFe probe), standard plates x 4 (10, 100, 500, 1000μm), 1.5V batteries (AA alkaline) x 4,
Price range
Delivery Time
Applications/Examples of results
● Various probes for different applications Conventional models from the manufacturer only supported one probe per main unit, but the M70L-600** can connect multiple probes. This makes it easy to swap out various probes according to the measurement target and application, as well as to replace them with spare probes.
