It firmly detects the periphery and enhances security across a wide range of scenarios.
At construction sites and equipment locations, theft and unauthorized entry targeting materials and tools during nighttime or unmanned hours are rampant. To prevent damage before it occurs, high-precision and stable security measures are required. The "Microwave Multi-Span Sensor BSS201-P1" from Pal Giken ensures greater safety at the site. It outputs an alarm when an intruder disrupts the detection area, which is composed of a pair of transmitters and receivers. Utilizing a 24GHz band specific low-power radio, it does not interfere with other communications or broadcasts, allowing for worry-free use without the need for a license. Additionally, it supports simultaneous operation of multiple units (up to three), enabling wide-area monitoring. It accommodates everything from simple installations to permanent setups, effectively protecting the site's "blind spots." For more details, please refer to the related links or the catalog.
Inquire About This Product
basic information
【Specifications (Excerpt)】 ■Detection Method: Cut-off detection method ■Technical Compliance: Compliant with specific low-power radio stations, technical standard conformity certification "ARIB STD-T73" (limited to Japan) ■Oscillation Frequency: 24.050 to 24.250 GHz ■Oscillation Output Power: 10 mW max. ■Multi-stage Installation: 3 stages ■External Dimensions: H106 × W92 × D37 mm (tolerance: ±1 mm) *excluding cable *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results

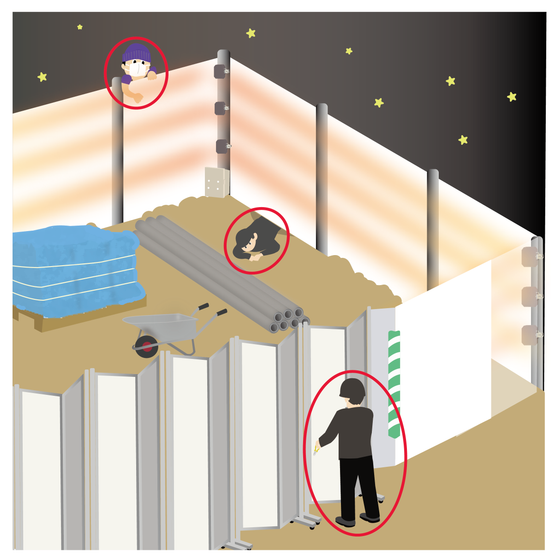

●Intrusion monitoring of power plants and substations ●Security monitoring of construction sites ●Countermeasures against unauthorized access in financial institutions ●Perimeter surveillance of airports ●Intrusion monitoring of museums and art galleries ●Monitoring of shrines and temples ●Intrusion detection at port facilities
catalog（2）
Download All Catalogs
Company information
Pal Giken is a group of engineers that realizes customers' dreams through manufacturing technology. We provide a unique product, a "one-and-only product," that meets the specific needs of our customers, rather than offering something that exists in multiple forms in the world.
