With serverless design, the controller can operate independently! Supports up to 129 access control points.

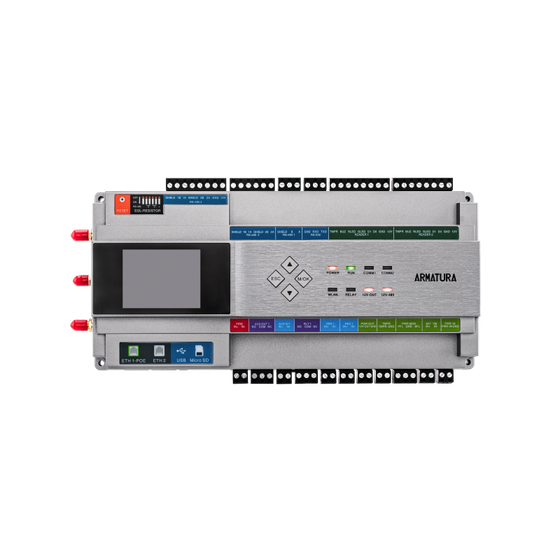

The "AHSC-1000" is an IP network-compatible controller that supports up to 792 AHEB series IO expansion boards and 32 AHDU door units, ultimately capable of handling up to 12,801 points of input or output. By leveraging the characteristics of MQTT, it becomes a suitable solution for advanced security systems, enabling the controller to communicate with a larger number of peripheral devices (door units, readers, sensors, etc.) within the same network environment. Additionally, the unlimited configurable security levels allow for immediate switching of user access rights even during lockdowns or lockouts. 【Features】 ■ Highest level of authentication performance ■ Advanced elevator control functions ■ Advanced global functions based on P2P (peer-to-peer) communication ■ Advanced cybersecurity *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
【Standard Specifications (Partial)】 ■Size (mm): Height × Width × Depth: 122 × 260 × 63 ■Power Supply: PoE 802.3at/DC 12–24V±20%, maximum 550mA (excluding reader current) ■Host Communication (Primary) ・Ethernet: 100Base-TX ・Communication between controller and server, as well as between controllers: AES encryption (256-bit) ■Host Communication (Secondary): Bluetooth 5.2 *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please download the PDF or feel free to contact us.
